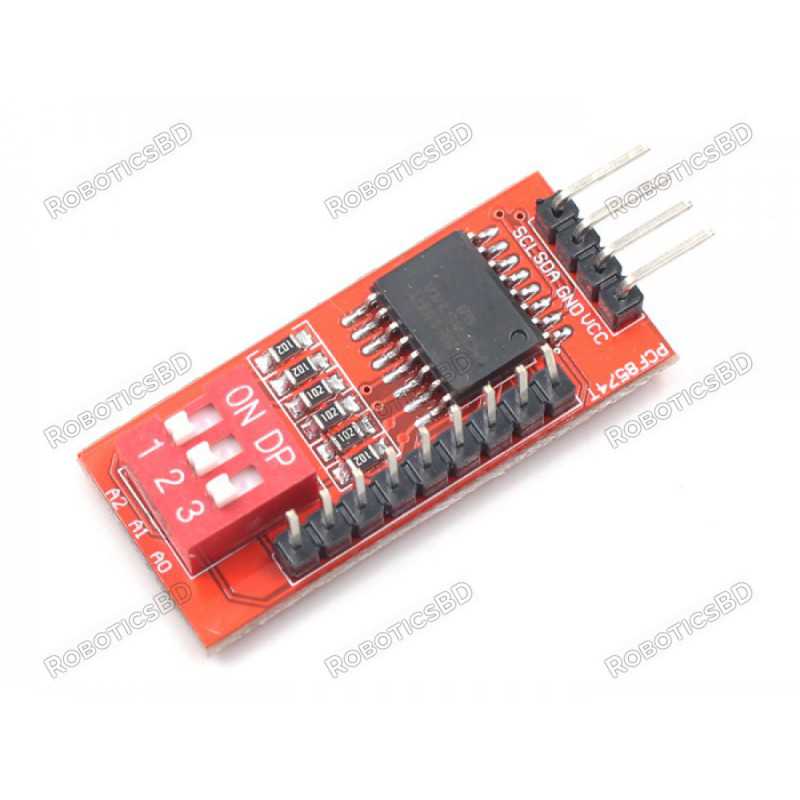

The PCF8574 IO Expansion Board is used as remote 8-bit I/O expander for I2C-bus. Up to 8 PCF8574, IO Expansion Board can be connected to the I2C-bus, providing up to 64 I/O ports. RoboticsBD
The PCF8574 IO Expansion Board features I2C pinheader on one side, and I2C connector on the opposite side. Hence, it’s more flexible to connect the board to your development system. The board also supports I2C cascading, allowing the use of multi module connected to the I2C bus at the same time by connecting the pinheader and connector. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Operating Voltage (VDC) | 3 ~ 5 |
| Interface | I2C |
| Ports | 8-bit parallel port |
| Length (mm) | 48 |
| Width (mm) | 16 |
| Height (mm) | 15 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 6 × 10 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x PCF8574T I2C I/O Extension Board.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of I/O Expander Module PCF8574T in Bangladesh is BDT 240 You can buy the I/O Expander Module PCF8574T at best price from our RoboticsBD or visit RoboticsBD Office.
|
