Arduino Opta, specially designed for PLC engineers, is a secure, easy-to-use micro PLC with industrial IoT capabilities.
Opta is equipped with frequently used networks and protocols in multiple industries, and supports both Arduino sketch and standard PLC languages, including LD (Ladder Logic Diagram) and FBD (Function Block Diagram). And its powerful STM32H747XI dual-core Cortex-M7 + M4 MCU allows users to perform real-time control, monitoring and implement predictive maintenance applications.
Arduino Opta, specially designed for PLC engineers, is a secure, easy-to-use micro PLC with industrial IoT capabilities.
Opta is equipped with frequently used networks and protocols in multiple industries, and supports both Arduino sketch and standard PLC languages, including LD (Ladder Logic Diagram) and FBD (Function Block Diagram). And its powerful STM32H747XI dual-core Cortex-M7 + M4 MCU allows users to perform real-time control, monitoring and implement predictive maintenance applications.
Secure and durable by design, Opta supports OTA firmware updates and ensures data security from the hardware to the Cloud thanks to the onboard secure element and X.509 standard compliance. Meanwhile, it maintains Arduino Pro's signature easy deployment in production thanks to a vast range of readily available software libraries and Arduino sketches. Last but not least, various connectivity options make keeping everything under control effortless via real-time dashboards combined with intuitive Arduino Cloud (or third-party services). Users can update wireless firmware and achieve remote control easily.

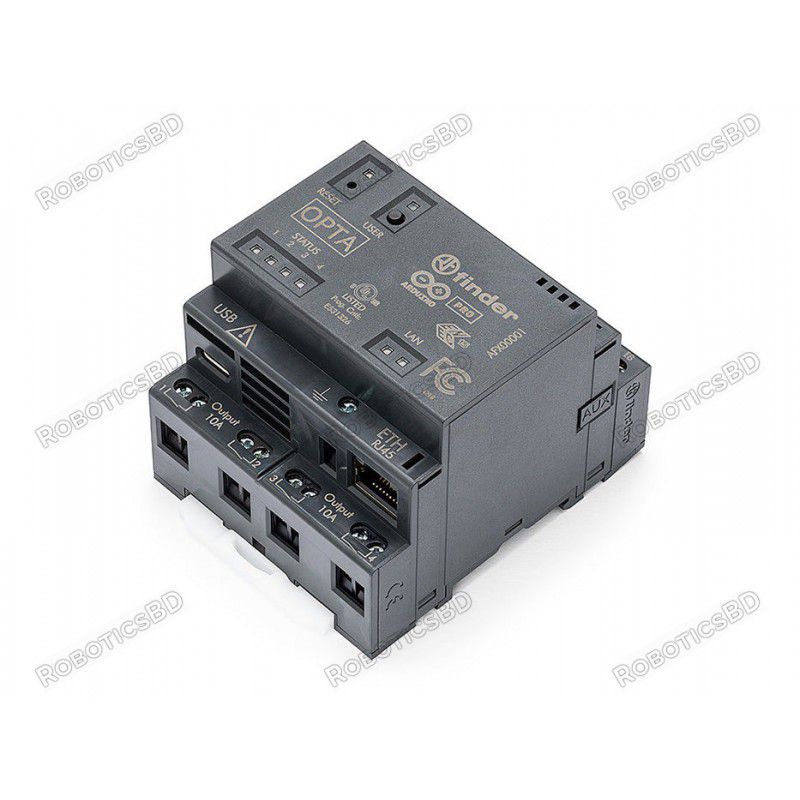

Figure 1: Product Image
Opta is mainly programmed on Arduino PLC IDE, which makes PLC programming easy. Choose any of the 5 programming languages defined by the IEC 61131-3 standard (Ladder, Functional Block Diagram, Structured Text, Sequential Function Chart, or Instruction List) and users can quickly code PLC applications or port existing ones to Arduino Opta.
Figure 2: Connection Diagram for Modbus RTU with RS-485 interface
Integrate the micro PLC with users' existing machines, devices, and production lines, or combine it with other elements in the modular and versatile Arduino ecosystem, from small and smart sensor-packed modules to SOMs to gateways, for end-to-end solutions that can be customized to meet any need.
Arduino Opta is available in three variants:
Arduino Opta Lite: onboard Ethernet and USB-C ports
Arduino Opta RS485: onboard Ethernet and USB-C ports, plus RS-485 connectivity
Arduino Opta WiFi: onboard Ethernet and USB-C ports, plus RS-485 and WiFi/Bluetooth LE
Applications
Energy management
Tank level monitoring
Use as an RTU
Specification
Supply Voltage: 12-24VDC
Input: Analog/digital input × 8
Output: Relay × 4 - Normally Open (NO) - Maximum: 10A per relay
USB Connection: Used for host and device operations, programming/refresh, and power supply for programming (not for driving external high-power peripherals)
Communication: support 10/100 Ethernet (TCP/IP or Modbus TCP) USB-C RS485 half duplex
What is the price of Arduino Opta RS485 Micro PLC (Ethernet and USB-C ports, RS485) in Bangladesh?
The latest price of Arduino Opta RS485 Micro PLC (Ethernet and USB-C ports, RS485) in Bangladesh is BDT 33,450 You can buy the Arduino Opta RS485 Micro PLC (Ethernet and USB-C ports, RS485) at best price from our RoboticsBD or visit RoboticsBD Office.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.
Product Images are shown for illustrative purposes only and may differ from the actual product.
