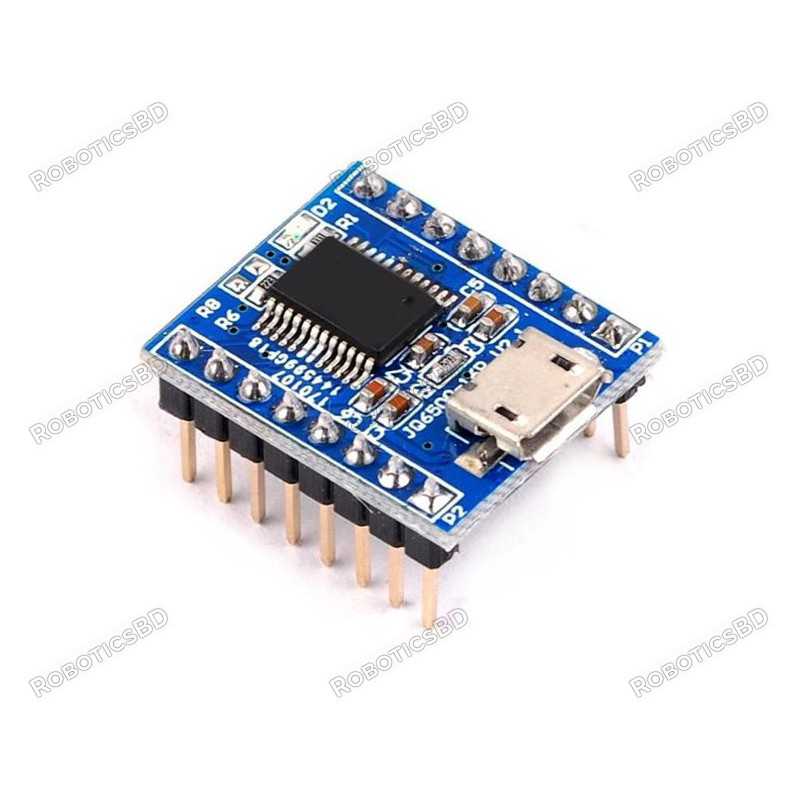

The JQ6500 V2.1 MP3 Player Module is a versatile audio solution capable of playing stereo MP3 and standard mono audio files. It offers two modes of operation: serial communication mode for integration with microcontrollers or AD button control mode for standalone use. The module supports a variety of file systems (FAT16, FAT32) and storage options, including TF cards and USB drives up to 32GB. With 30-level volume control, 10 EQ settings, and a 24-bit DAC output, the JQ6500 ensures high-quality, customizable sound. Ideal for voice prompts, alarms, and navigation systems, this compact module is perfect for a wide range of audio applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Operating Voltage | 3.5-5V DC |
| Current Rating | 20mA |
| Speaker Power | 8Ω / 3W |
| Supported Sampling Rates | 8/11.025/12/16/22.05/24/32/44.1/48 kHz |
| Audio Output | 24-bit DAC |
| File System Support | FAT16, FAT32 |
| Storage Options | TF card (max 32GB), USB (max 32GB), NOR FLASH (64M bytes) |
| Volume Adjustment | 30 levels |
| EQ Settings | 10 adjustable EQ modes |
| Communication Interface | UART (RX/TX pins) |
| Dimensions | 8 x 5 x 2 cm |
| Shipment Weight | 0.0048 kg |
| Shipment Dimensions | 8 x 5 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The JQ6500 Voice sound module has 16 pins and the table below explains the pin and their functions.
| Pin Type | Pin Description |
| K1 | Playback of Audio 1 |
| K2 | Playback of Audio 2 |
| K3 | Playback of Audio 3 |
| K4 | Playback of Audio 4 |
| K5 | Playback of Audio 5 |
| SGND | Ground |
| ADKEY | AD port |
| BUSY | Play Indicator |
| RX | UART serial Data input |
| TX | UART serial data output |
| GND | Ground |
| VCC | 5V power supply |
| ADC_R | Headphones/Amplifier(Right Channel) |
| ADC_L | Headphones/Amplifier(Left Channel) |
| SPK- | Speaker - |
| SPK+ | Speaker + |
The JQ6500 MP3 player comes in two versions; JQ6500-16P and JQ6500-28P. The JQ6500-28P version comes with an SD card slot to add up to the memory of the module.
There are two modes by which the JQ6500 module can be controlled. Using buttons or through a microcontroller. Connecting the JQ6500 module is pretty easy. K pins(K1, K2, K3, K4, K5) are pins for the ground trigger to play the defined audio for that port. The JQ6500 module can communicate to an MCU/MPU via UART communication. The RX TX pins on the module are to be connected to the TX and RX pins of the MCU/MPU, respectively. The speaker is connected to the SPK - and SPK + pins on the board.
Libraries and software's to be installed: JQ6500 Serial, Music update tool software can be downloaded and used to update the soundtracks by connecting a mini USB to the computer.
Github Link
2D Model of JQ6500 MP3 Player Module
1 x JQ6500 V2.1 MP3 Player Module
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of JQ6500 V2.1 MP3 Player Module in Bangladesh is BDT 690 You can buy the JQ6500 V2.1 MP3 Player Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
