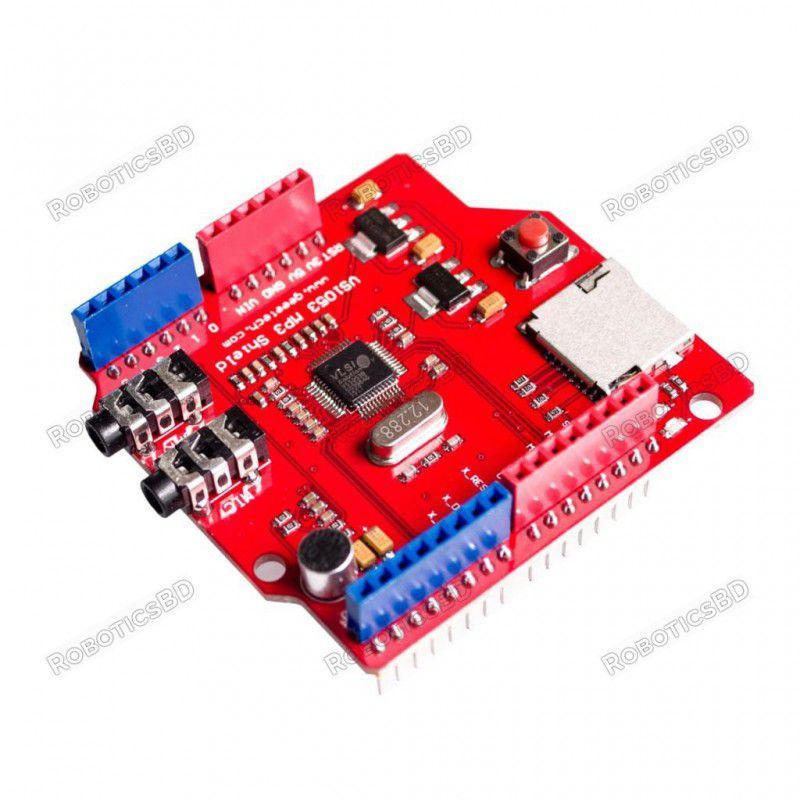

The VS1053 MP3 Recording Module Development Board is a versatile and powerful audio solution for music playback and real-time recording projects. Featuring the VS1053 audio processor chip, this module supports a wide range of music formats and enables OGG real-time encoding recording. Designed with ease of integration in mind, it offers SPI interface control, an onboard TF card slot for file storage, and separate 3.5 mm jacks for microphone input and audio output.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The VS1053 MP3 Recording Module Development Board is a versatile and powerful audio solution for music playback and real-time recording projects. Featuring the VS1053 audio processor chip, this module supports a wide range of music formats and enables OGG real-time encoding recording. Designed with ease of integration in mind, it offers SPI interface control, an onboard TF card slot for file storage, and separate 3.5 mm jacks for microphone input and audio output.
Built with a high-quality onboard microphone, line-in interface, power indicator light, and a stable voltage supply through onboard LDO regulators, the module ensures high-fidelity audio processing with maximum reliability. Whether you are building a music player, voice recorder, or embedded audio project, the VS1053 Development Board is an ideal choice for developers and enthusiasts.
Supports a wide range of audio formats including MP3, WAV, MIDI, and real-time OGG encoding for recording
SPI interface with all control signal lines easily accessible
Onboard Microphone for direct audio recording
Line-in input interface for external audio sources
Separate 3.5 mm audio jacks for microphone input and stereo headphone output
Onboard TF card slot for easy storage and playback of audio files
Onboard power indicator light for easy status monitoring
3.3V and 2.8V LDO voltage regulators (AMS-1117) supplying up to 800mA current
12.288 MHz crystal oscillator for accurate audio timing
Single +5V DC power supply for simplified integration
Chipset: VS1053
Interface: SPI
Output: Stereo headphone out
Input: Onboard microphone and line-in interface
Storage: TF (microSD) card slot
Voltage Regulators: AMS-1117 (3.3V and 2.8V, 800mA current)
Crystal Oscillator: 12.288 MHz
Power Supply: +5V DC
Status Indicator: Onboard Power LED
Audio Jacks: Two separate 3.5mm jacks for MIC and Speaker
Connect the module to your microcontroller using the SPI interface.
Insert a TF card to store recordings or playback files.
Connect a microphone to the MIC jack or use the onboard microphone for recording.
Play music through the headphone jack or record audio in real-time with OGG encoding.
Monitor module power status using the onboard LED indicator.
MP3 and audio player projects
Voice recording and real-time audio capture
Embedded audio systems
DIY music playback devices
Microcontroller or DSP-based audio processing projects
1 x VS1053 MP3 Recording Module Development Board with Onboard Recording Function
Supports both playback and recording with real-time OGG encoding
Easy integration with SPI control and accessible signal lines
Built-in microphone and audio jacks for versatile audio input/output options
Stable, regulated power supply ensures consistent performance
Compact and powerful design for a wide range of embedded audio projects
Bring professional-grade audio playback and recording to your next project with the VS1053 MP3 Recording Module Development Board.
Order now to explore powerful, flexible, and high-quality audio solutions!
The latest price of VS1053 MP3 Recording Module Development Board with Onboard Recording Function in Bangladesh is BDT 680 You can buy the VS1053 MP3 Recording Module Development Board with Onboard Recording Function at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
