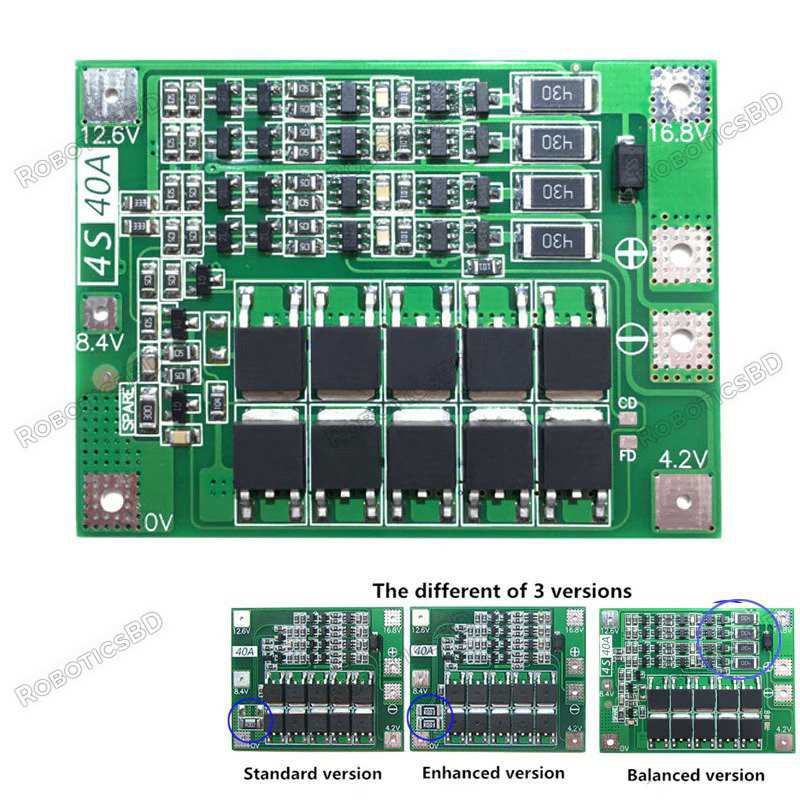

The 4 Series 40A 18650 Lithium Battery Protection Board 14.8V 16.8V with Balance for Drill Motor Lipo Cell Module comes with recovery function – AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (If the cooling environment is not good, please reduce the load current use).
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650, 26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance).
The Board which can be easily installed in a compact size or on battery bundle itself. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Battery | 4 Cell |
| Overcharge detection voltage (V) | 4.25 ± 0.025 |
| Over-discharge detection voltage (V) | 2.50 ± 0.08 |
| Over current Protection (A) | 40 |
| Working current (A) | 20 |
| Operating Temperature (°C) | -40 ~ +85 |
| Length (mm) | 60 |
| Width (mm) | 45 |
| Height (mm) | 3.5 |
| Weight (gm) | 12 |
| Shipment Weight | 0.016 kg |
| Shipment Dimensions | 9 × 5 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 4S 40A 14.8V 18650 Lithium Battery BMS PCB Protection Board
The latest price of 4S 40A 14.8V 18650 Lithium Battery BMS PCB Protection Board in Bangladesh is BDT 290 You can buy the 4S 40A 14.8V 18650 Lithium Battery BMS PCB Protection Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
