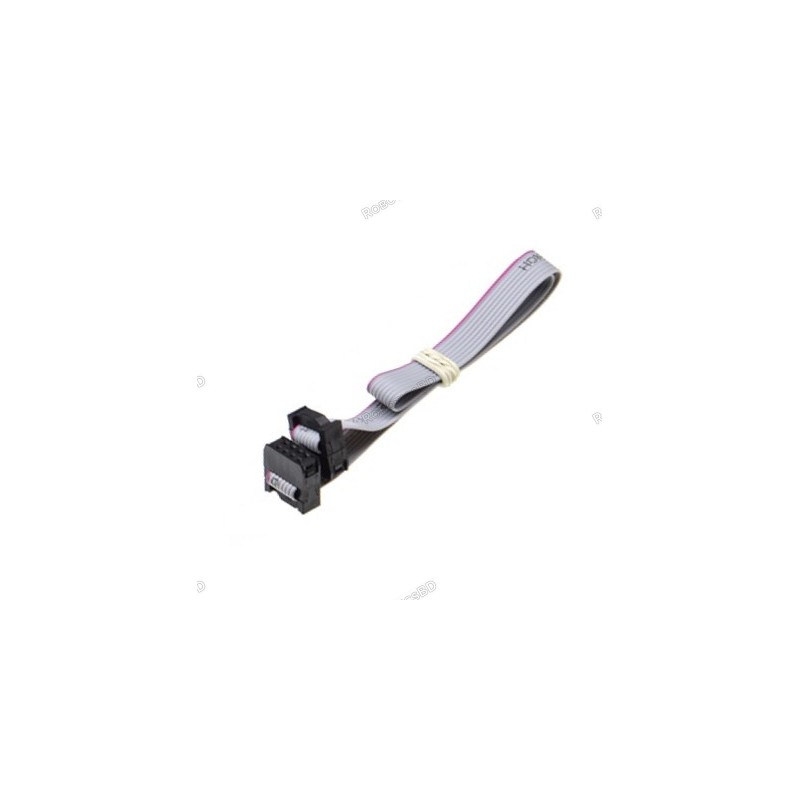

It is a 2.54mm Pitch 8 Pin JTAG ISP AVR Cable. It is used in verifying designs and testing PCBs after they are manufactured.
Essentially all embedded systems platforms are JTAG compatible. They include a JTAG port to support plug-in debugging and firmware programming as well as for boundary-scan testing. Featured By RoboticsBD.
The cable has two rows of 8 pins each and has a length of 200mm.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Connector Type | JTAG |
| No. of Pins | 8 |
| Pin Spacing (mm) | 2.54 |
| Length (mm) | 200 |
| Width (mm) | 17 |
| Height (mm) | 15 |
| Weight (gm) | 8 (each) |
| Cable Length (cm) | 20 |
| Cable Size (AWG) | 28 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 6 × 6 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Flat Ribbon 2.54MM Pitch FC-8 JTAG ISP AVR Data Cable 20cm 8 Pin
The latest price of Flat Ribbon 2.54MM Pitch FC-8 JTAG ISP AVR Data Cable 20cm 8 Pin in Bangladesh is BDT 90 You can buy the Flat Ribbon 2.54MM Pitch FC-8 JTAG ISP AVR Data Cable 20cm 8 Pin at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
