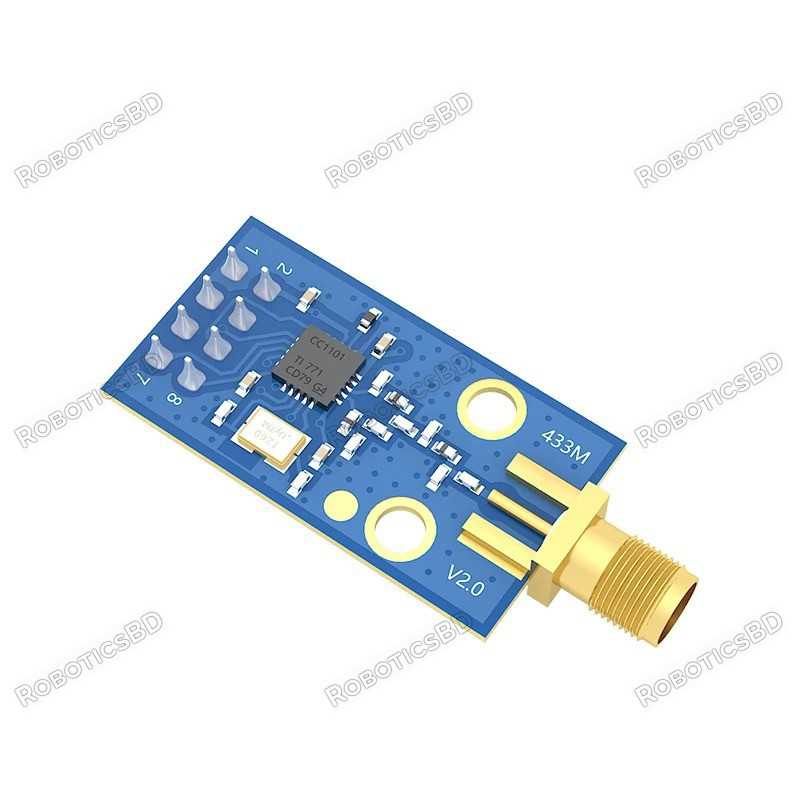

The CC1101 433MHz 100mW SMA Antenna E07-M1101D-SMA UHF Wireless Transceiver Module is a reliable and compact solution for short-range communication applications. Based on the mature CC1101 chip from Texas Instruments, it ensures robust performance and high stability. The module operates in the 387~464 MHz frequency range and offers a maximum transmission power of 10mW with a sensitivity of -108 dBm. Its SPI interface allows seamless integration with various microcontrollers. Designed for smart homes, industrial automation, scientific research, and medical applications, this module delivers a 1000m range under optimal conditions. Its DIP package with an SMA-K antenna provides enhanced RF capabilities while maintaining a small footprint. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Chip | CC1101 |
| Frequency Range | 387~464 MHz (Default: 433 MHz) |
| Transmission Power | 10mW (10 dBm) |
| Receiving Sensitivity | -108 dBm |
| Air Data Rate | 0.6kbps~500kbps (Default: 0.6kbps) |
| Range | Up to 1000m (in open air) |
| Interface | SPI |
| Power Supply | 1.8V ~ 3.6V |
| Transmitting Current | 29 mA |
| Receiving Current | 18 mA |
| Operating Temperature | -40°C ~ +85°C |
| Antenna Type | SMA-K |
| Dimensions | 15x30 mm |
| Shipment Weight | 0.004kg |
| Shipment Dimensions | 4x2x2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x CC1101 433mhz 100mW SMA Antenna E07-M1101D-SMA uhf Wireless Transceiver Module
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of CC1101 433mhz 100mW SMA Antenna E07-M1101D-SMA uhf Wireless Transceiver Module in Bangladesh is BDT 550 You can buy the CC1101 433mhz 100mW SMA Antenna E07-M1101D-SMA uhf Wireless Transceiver Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
