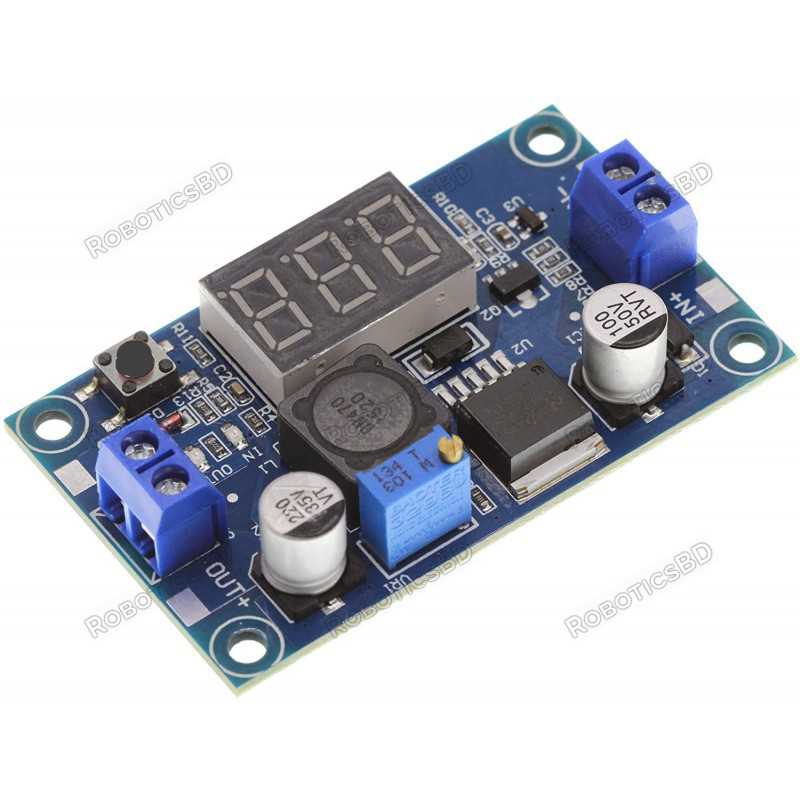

This is LM2596 2A Buck Step-down Power Converter Module DC 4 ~ 40 to 1.3 ~ 37V, it comes with a built-in voltmeter display and uses an advanced microcontroller. RoboticsBD
Together with its high precision multi-turn potentiometer, this means any desired output voltage within its supply range can be set without the need for an external voltage meter. The module also boasts a very high operating range with a DC input supply range of 4 ~ 40V and an adjustable output range of 1.3 ~ 37V. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Input Voltage (V) | 4 ~ 40 VDC |
| Output Voltage (VDC) | 1.3 ~ 37 |
| Max. Output Current (A) | 2 |
| Switching Frequency(KHz) | 150 |
| Operating Temperature (°C) | -40 to 90 |
| Length (mm) | 62 |
| Width (mm) | 34 |
| Height (mm) | 12 |
| Weight (gm) | 22 |
| Shipment Weight | 0.025 kg |
| Shipment Dimensions | 7 × 4.5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x LM2596 DC DC Step Down Buck Converter with Digital Tube Display.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of LM2596 DC DC Step Down Buck Converter with Digital Tube Display in Bangladesh is BDT 259 You can buy the LM2596 DC DC Step Down Buck Converter with Digital Tube Display at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
