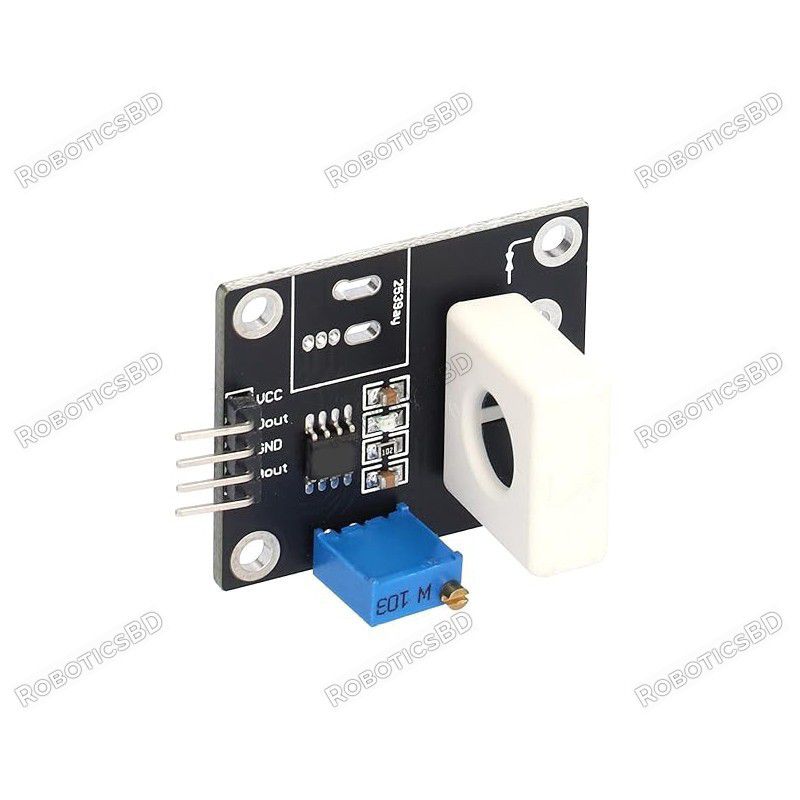

The WCS1700 Hall Current Sensor Module is a high-precision, reliable solution for measuring both AC and DC currents with excellent galvanic isolation. Utilizing the Hall effect principle, this module provides a linear analog voltage output directly proportional to the sensed current, ensuring accurate and real-time monitoring.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The WCS1700 Hall Current Sensor Module is a high-precision, reliable solution for measuring both AC and DC currents with excellent galvanic isolation. Utilizing the Hall effect principle, this module provides a linear analog voltage output directly proportional to the sensed current, ensuring accurate and real-time monitoring.
With a compact design, robust 4000V RMS isolation, and wide operating range, the WCS1700 is perfectly suited for applications such as power monitoring, battery management systems, motor control, and industrial automation. Designed for easy integration into a variety of systems, it is ideal for both professional engineering applications and DIY projects.
High-accuracy current sensing for AC and DC currents
Wide detection range: 0A to 70A
Analog output voltage proportional to the measured current
High isolation voltage: 4000V RMS for safe and reliable operation
Compact and lightweight design for easy system integration
Operates at low voltage: Compatible with 3V to 5V systems
Wide temperature range: Suitable for harsh environments
Operating Voltage: 3V to 5V (5V recommended)
Detection Current Range: 0A to 70A
Output Signal: Analog voltage proportional to current
Sensitivity: 33mV/A
Isolation Voltage: 4000V RMS
Operating Temperature Range: -20°C to +85°C
Module Dimensions: 31mm x 37mm
Connect the module's power pins (VCC and GND) to your system's supply voltage (3V-5V).
Pass the current-carrying conductor through the sensor’s aperture.
Read the analog output voltage and convert it to current based on the module’s sensitivity (33mV/A).
Interface with an ADC input of a microcontroller or data acquisition system for real-time monitoring.
Power monitoring and energy management systems
Battery management and protection circuits
Motor control and overcurrent protection
Solar and renewable energy systems
Industrial automation and process control
Electric vehicle (EV) charging and monitoring systems
1 x WCS1700 Hall Current Sensor Module
Accurate and isolated current measurement for both AC and DC
Robust 4000V isolation enhances safety and device protection
Linear analog output simplifies signal processing
Compact and easy to integrate into new or existing designs
Reliable performance across a wide temperature range
Monitor and manage current safely and accurately with the WCS1700 Hall Current Sensor Module.
Order now to add high-precision current sensing to your power, battery, or industrial projects!
The latest price of WCS1700 Hall Current Sensor Module in Bangladesh is BDT 820 You can buy the WCS1700 Hall Current Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
