The STM32 BlackPill is a compact, high-performance development board based on the STM32F411CEU6 microcontroller, featuring an ARM Cortex-M4 core running at 100 MHz, with 512 kB of Flash memory and 128 kB of RAM. This board offers an ideal entry point for developers and hobbyists looking to explore the powerful STM32 platform, while its small footprint makes it perfect for embedded applications, portable devices, and educational use.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Product Name:

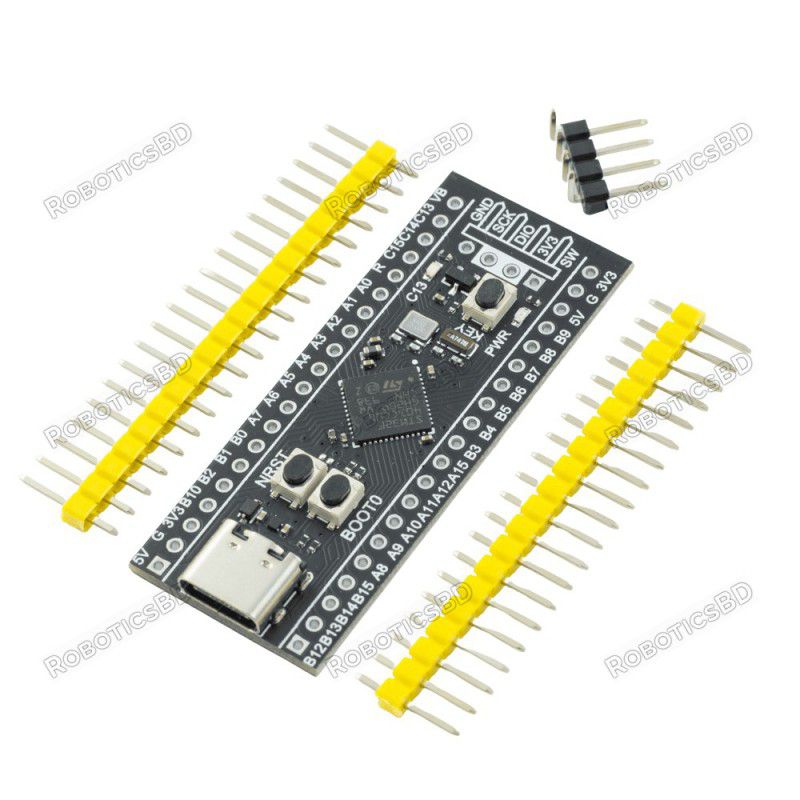

STM32 BlackPill Development Board with STM32F411CEU6 Microcontroller
Product Description:
The STM32 BlackPill is a compact, high-performance development board based on the STM32F411CEU6 microcontroller, featuring an ARM Cortex-M4 core running at 100 MHz, with 512 kB of Flash memory and 128 kB of RAM. This board offers an ideal entry point for developers and hobbyists looking to explore the powerful STM32 platform, while its small footprint makes it perfect for embedded applications, portable devices, and educational use.
Designed for maximum compatibility, it supports development in STM32CubeIDE, Keil, IAR, and even Arduino IDE, giving both professionals and beginners a versatile platform for prototyping. It also supports MicroPython, enabling rapid development in a lightweight Python environment ideal for microcontrollers.
This version of the BlackPill includes USB Type-C power, SWD programming header, user and power LEDs, and a BOOT button for USB-UART bootloader mode. It provides direct access to all I/O ports through goldpin headers, offering seamless integration into breadboards or custom PCBs.
Key Features:
Microcontroller: STM32F411CEU6
Core: ARM Cortex-M4 with FPU
Clock Speed: 100 MHz
Flash Memory: 512 kB
RAM: 128 kB
USB-C Powered with 5V input
Interface Options:
3 × I2C
5 × SPI/I2S
3 × USART
USB 2.0 OTG Full Speed
SDIO
Peripherals:
16-channel ADC
Real-Time Clock (RTC)
7 × Timers
Dual crystal oscillators (LSE and HSE)
Expansion:
SPI Flash footprint (U3) for MicroPython code storage
Goldpin headers for I/O and SWD programmer
User Features:
User LED
Power LED
Reset button
BOOT button for programming mode
Board Dimensions: 52mm × 22mm (standard BlackPill form factor)
Programming & Compatibility:
Compatible with STM32CubeIDE, Arduino IDE, Keil, IAR, GCC-based toolchains
Supports USB-UART bootloader programming or SWD with ST-Link
MicroPython support with optional SPI flash expansion
Applications:
Embedded systems development
DIY electronics and IoT projects
Robotics and control systems
Real-time data acquisition
Educational tools for microcontroller programming
Why Choose the STM32 BlackPill F411?
This board provides an unbeatable combination of power, flexibility, and affordability in a minimal size. Whether you're a seasoned embedded engineer or a student exploring microcontroller platforms, the STM32 BlackPill with STM32F411 is your gateway to high-performance 32-bit development.
Upgrade your prototyping game today with the STM32 BlackPill F411 – compact, capable, and ready to code.
The latest price of STM32 BlackPill Development Board with STM32F411CEU6 Microcontroller in Bangladesh is BDT 690 You can buy the STM32 BlackPill Development Board with STM32F411CEU6 Microcontroller at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
