This GPRS GSM breakout board based on the AI-Thinker A9G, which is the newest GSM GRPS Quad-Band module. You can add voice, text, SMS, and data to your project with this module. It is a high-cost performance compare with SIM800, SIM900. A9 is an ideal solution for M2M applications, suitable for automotive, industrial and PDA, personal tracking, electricity environment detection, wireless POS, smart metering, and other M2M applications, to provide comprehensive GSM / GPRS text messaging, voice and data transmission services. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Application:
- Remote monitoring intercom with GSM and microphone/speakers,
- Remote monitoring camera with GPRS + TF + camera extension board,
- Wechat payment slot machine scheme with the slot machine function.
- Anti-theft tracking device with GPRS + GPS and accelerometer
- Supports voice call and SMS message.
- Supports GSM/ GPRS frequency: 850/ 900/ 1800/ 1900 MHz.
- Supports GPRS data service, the maximum download data rate is 85.6 Kbps, upload data is 42.8 Kbps.
- Supports GSM07.07, 07. 05 AT commands and Ai-Thinker explosion command.
- Supports 3 serial ports, one download serial port, one AT command port.
Features:
- Working voltage: 5v USB or Lipo battery(3.3V-4.2V)
- Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ
- Supports digital audio and analog audio, supports HR, FR, EFR, AM R voice coding
- Support voice calls and SMS messages
- Embedded network service protocol stack
- Support standard GSM07.07.07.05AT command
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
A9G |
| Frenquency |
850/900/1800/1900MHz |
| GPRS Multi-Slot |
Class 12 |
| GPRS Mobile Station |
Class B |
| Compatible with GSM |
Class 4 (2W@850/ 900MHz)
Class 1 (1W@1800/1900MHz) |
| Power Supply |
3.5~4.2V typical value 4.0V |
| Current |
1.14mA@DRX=5
1.03mA@DRX=9 |
| AT command |
3GPP TS 27.007, 27.005 |
| Working Temperature Range (°C) |
-40 to 85 |
| Length (mm) |
40 |
| Width (mm) |
25 |
| Height (mm) |
15 |
| Weight (gm) |
22 |
| Shipment Weight |
0.025 kg |
| Shipment Dimensions |
12 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- AI-Thinker A9G
- A9G GPRS/GSM+GPS/BDS
- Supports digital audio and analog audio, supports HR, FR, EFR, AM R voice coding
Package Includes:

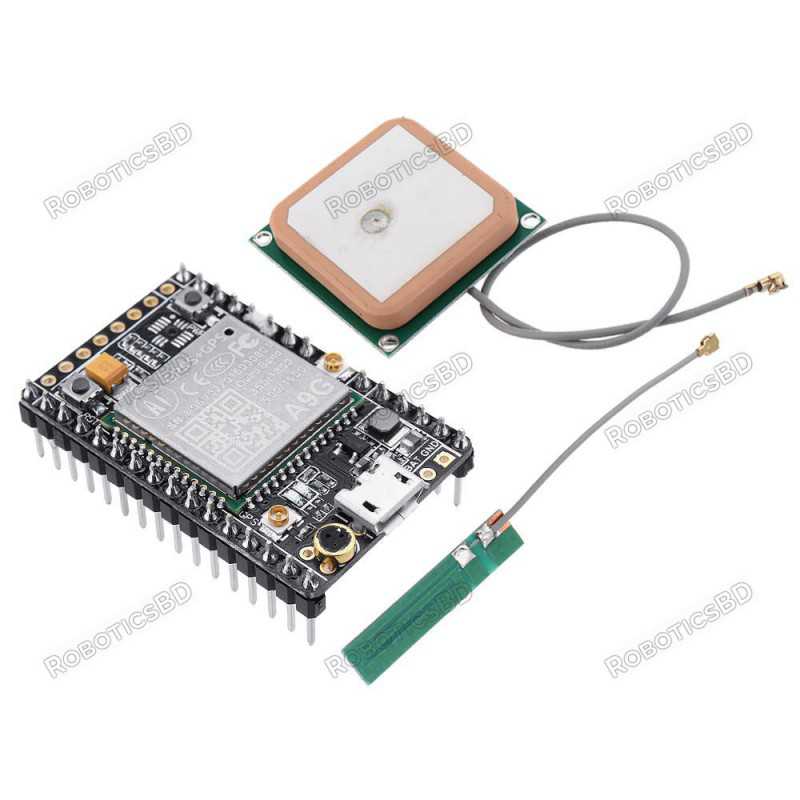

1 x AI-thinker A9G GSM/GPRS+GPS/BDS Development Board.
