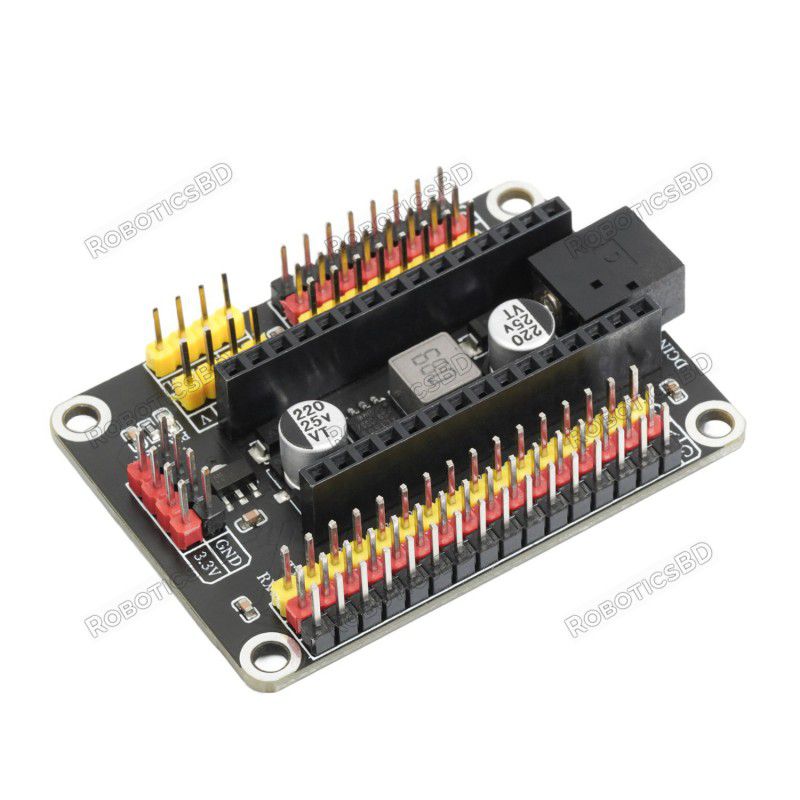

The Nano Expansion Board is a compact and convenient IO shield designed specifically for the Arduino Nano development board. It breaks out all essential digital and analog pins onto clearly labeled pin headers, enabling quick prototyping and streamlined module connections. Whether you're building a simple project or a complex system, this expansion board reduces wiring clutter and improves stability, making it ideal for beginners and advanced makers alike.
Nano is not included
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Product Description:
The Nano Expansion Board is a compact and convenient IO shield designed specifically for the Arduino Nano development board. It breaks out all essential digital and analog pins onto clearly labeled pin headers, enabling quick prototyping and streamlined module connections. Whether you're building a simple project or a complex system, this expansion board reduces wiring clutter and improves stability, making it ideal for beginners and advanced makers alike.
With added power options, serial and I2C headers, and support for both digital and analog operations, it’s the perfect companion for your Nano board.
Key Features:
Fully compatible with Arduino Nano
Breaks out Digital IO (D0–D13) and Analog IO (A0–A7) pins
Includes serial communication header (TX/RX/GND/VCC)
Dedicated I2C header (GND/VCC/SDA/SCL)
Supports 3.3V and 5V modules
External power adapter interface for high-power devices
Clearly labeled pin headers for easy connection with Dupont cables
Compact design ideal for breadboarding or standalone projects
Technical Specifications:
Digital IO Pins: D0–D13 (with PWM on D3, D5, D6, D9, D10, D11; interrupts on D2, D3)
Analog IO Pins: A0–A7 (input 0–1023, output 0–255)
Voltage Output Pins: 3.3V and 5V (depends on Nano)
Power Supply Options: USB or external DC via adapter
Interfaces:
TX/RX/GND/VCC for serial modules
GND/VCC/SDA/SCL for I2C modules
How to Use:
Insert your Arduino Nano into the headers on the expansion board.
Connect sensors, modules, or other peripherals using Dupont wires.
Use the onboard power jack if additional current is needed.
Program your Nano via USB and interact with modules using Serial, I2C, or GPIO pins.
Applications:
Rapid Arduino Nano prototyping
STEM education and electronics learning
Sensor integration projects
DIY automation and robotics
Smart devices and IoT systems
Package Includes:
1 x Nano Expansion Board (Nano not included)
Why Choose This Expansion Board?
This board simplifies your development process by organizing all IO pins in an accessible, plug-and-play format. It supports a wide range of modules, making it ideal for learners, hobbyists, and developers working with the Arduino Nano platform.
Unlock the full potential of your Arduino Nano with this reliable and easy-to-use expansion board—start prototyping smarter and faster today!
The latest price of Nano Expansion Board IO Shield for Arduino Nano By Hello Stem in Bangladesh is BDT 450 You can buy the Nano Expansion Board IO Shield for Arduino Nano By Hello Stem at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
