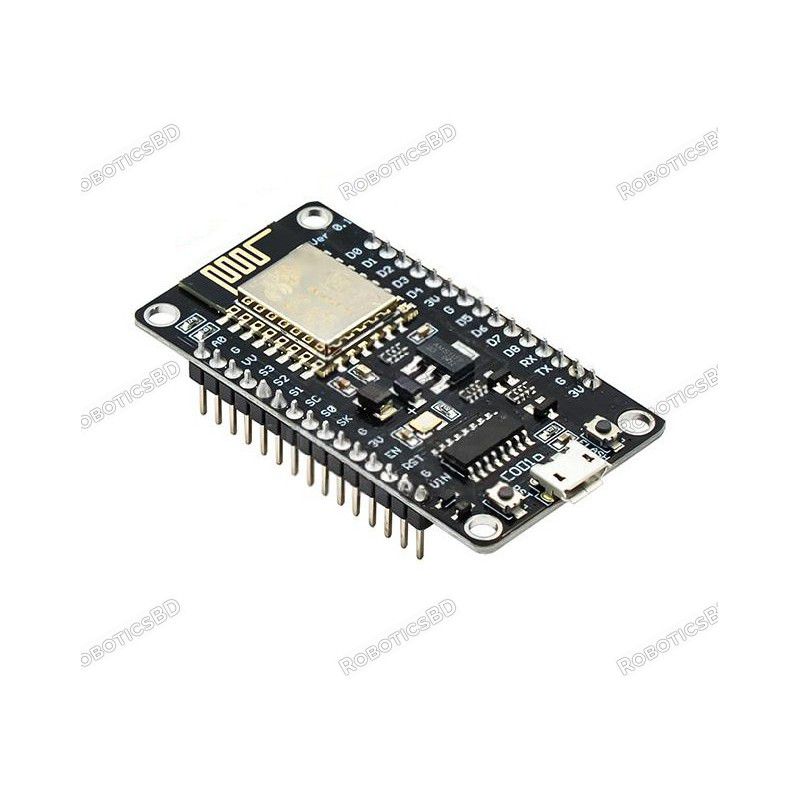

The All new NodeMcu ESP8266 V3 Lua CH340 Wifi Dev. Board is a fast leading edge low-cost WiFi technology. Modern high-level mature LUA based technology. It is an integrated unit with all available resources on board. It is super simple to complement your existing Arduino projects or any development board that has I/O pins available. RoboticsBD
Modern Internet development tools such as Node.js can take advantage the NodeMCU with the built-in API to put your idea on the fast track immediately.NodeMCU is built based on the mature ESP8266 technology to take advantage of the abundant resources available on the web.
NodeMCU has ESP-12 based serial WiFi integrated on board to provide GPIO, PWM, ADC, I2C and 1-WIRE resources at your fingertips, built-in USB-TTL serial with super reliable industrial strength CH340 for superior stability on all supported platforms. This module is one of the cheapest available wifi-modules in the market. V3 or Version3 is the latest version of this module. RoboticsBD
- Arduino-like hardware IO – Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware. Code like Arduino, but interactively in Lua script.
- Nodejs style network API Event-driven API for network applications, which facilitates developers writing code running on a 5mm5mm sized MCU in Nodejs style. Greatly speed up your IOT application developing process.
- Development Kit The Development Kit based on ESP8266, integrates GPIO, PWM, IIC, 1-Wire and ADC all on one board. Power your development in the fastest way combination with NodeMCU Firmware! RoboticsBD
The NodeMcu is an open-source firmware and development kit that helps you to prototype your IoT product with few Lua script lines. The Development Kit based on ESP8266, integrated GPIO, PWM, IIC, 1- Wire and ADC all in one board. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- Uses CH340G instead of CP2102.
- Wireless 802.11 b/g/n standard
- WiFi at 2.4GHz, support WPA / WPA2 security mode
- Support STA/AP/STA + AP three operating modes
- Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- ESP8266 has IO Pin
- Don’t need to download resetting
- A great set of tools to develop ESP8266
- Lowest cost WI-FI
- FOR Arduino like hardware IO
- Greatly speed up your IOT application developing process
- Open-source, Interactive, Programmable, Low cost, Simple, Smart, WI-FI enabled
- WI-FI MCU ESP8266 integrated and easy to prototyping development kit. RoboticsBD
- We provide the best platform for IoT application development at the lowest cost.
- NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.
- Event-driven API for network applications, which facilitates developers writing code running on a 5mm*5mm sized MCU in Nodejs style.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Drive Type |
Dual high-power H-bridge |
| Power Input(V) |
4.5 to 9 |
| Communication Interface Voltage(V) |
3.3 |
| Flash size(MB) |
4 |
| Operating Temperature (°C) |
-40 to 125 |
| Transfer Rate(Kbps) |
110 to 460800 |
| AD0 |
1 channel ADC |
| Length (mm) |
49 |
| Width (mm) |
24.5 |
| Height (mm) |
13 |
| Shipment Weight |
0.06 kg |
| Shipment Dimensions |
6 × 4 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation :
- ESP8266 Projects (Last Minute Engineers)
- Insight Into ESP8266 NodeMCU Features & Using It With Arduino IDE (Last Minute Engineers)
- Create A Simple ESP8266 NodeMCU Web Server In Arduino IDE (Last Minute Engineers)
Package Includes :
1 x ESP8266 CH340 NodeMCU Wifi Module Lua V3
