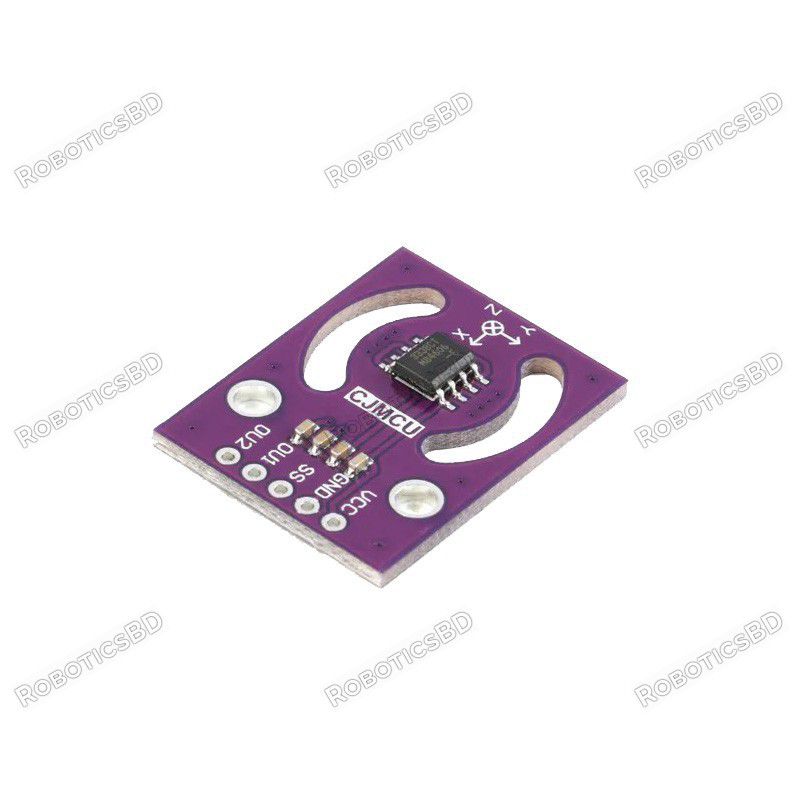

The MLX90333 Handle 3D Joystick Absolute Position Sensor Module is designed for precise and reliable 3D position sensing in various applications. Operating within a voltage range of 4.5V to 5.5V, this module uses advanced 3D magnetometer technology to accurately detect joystick movements or linear positions. With multiple output modes, including analog, PWM, and SPI, it offers flexible integration options for different systems. The sensor operates effectively across a wide temperature range, ensuring consistent performance in diverse environments. Its compact size and robust diagnostics features make it an ideal choice for high-precision control applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The MLX90333 Handle 3D Joystick Absolute Position Sensor Module is designed for precise and reliable 3D position sensing in various applications. Operating within a voltage range of 4.5V to 5.5V, this module uses advanced 3D magnetometer technology to accurately detect joystick movements or linear positions. With multiple output modes, including analog, PWM, and SPI, it offers flexible integration options for different systems. The sensor operates effectively across a wide temperature range, ensuring consistent performance in diverse environments. Its compact size and robust diagnostics features make it an ideal choice for high-precision control applications.
Working Voltage: 4.5V-5.5V
Ambient Temperature Range: -40°C to +85°C
Main Clock Frequency: Fast mode 20MHz, slow mode 7MHz
Sampling Rate: Fast mode 200μs, slow mode 600μs
Output Modes: Analog (proportional), PWM, SPI (16 bits)
Analog Input ADC Accuracy: Fast mode 14 bit, slow mode 15 bit
PWM Output Frequency: 100-1000Hz, PWM accuracy 12 bits (0.025% DC/LSB)
Angular Resolution and Accuracy: 12-bit angular resolution, 10-digit angular accuracy
Magnetic Flux Density: Bx and By: 20-70mT, Bz: 24-140mT
Dimensions: 28.5 x 22.1 x 3.3mm
Internal Processor: 16-bit RISC DSP with 256B-RAM, 10KB-ROM, 128B-EEPROM, 5MIPS at 20MHz
Mounting: Two M3 mounting holes
pinout Config
The latest price of MLX90333 Handle 3D Joystick Absolute Position Sensor Module in Bangladesh is BDT 1,150 You can buy the MLX90333 Handle 3D Joystick Absolute Position Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
