The NRF24L01 module is the latest in RF modules. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the NRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the 2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna and add some extra pipelines, buffers, and an auto-retransmit feature – very nice!
This board features a reverse polarized SMA connector for maximum RF range. And there is PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts.
This module comes with the 2.4G antenna (2DB), with a 250Kbps transmission rate on open-air it can reach the 800-1K meters communication distance. RoboticsBD
You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system! What’s more, this nRF24L01+ module is designed with the Power amplifier and SMA antenna This allowed you to use the wireless communication up to 1000 meters! (No barrier)Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Input Supply voltage (V) | 3 ~ 3.6 (recommended 3.3V) |
| Working current in transmit mode (mA) | 115 |
| Maximum output power (dBm) | 20 |
| Power-down mode current (μA) | 4.2 |
| Operating Range (Km) | 1 |
| Antenna Gain (peak) (dBi) | 2 |
| Receiver sensitivity | -92dBm in 2Mbps mode -95dBm in 1Mbps mode -104dBm in 250kbps mode |
| PA growth (dB) | 20 |
| LAN growth (dB) | 10 |
| LAN noise figure (dB) | 2.6 |
| Operating temperature (°C) | -20 ~ +70 |
| Length (mm) | 49 |
| Width (mm) | 16 |
| Height (mm) | 13 |
| Weight (gm) | 15 |
| Length of Antenna (cm) | 11 |
| Shipment Weight | 0.08 kg |
| Shipment Dimensions | 12 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

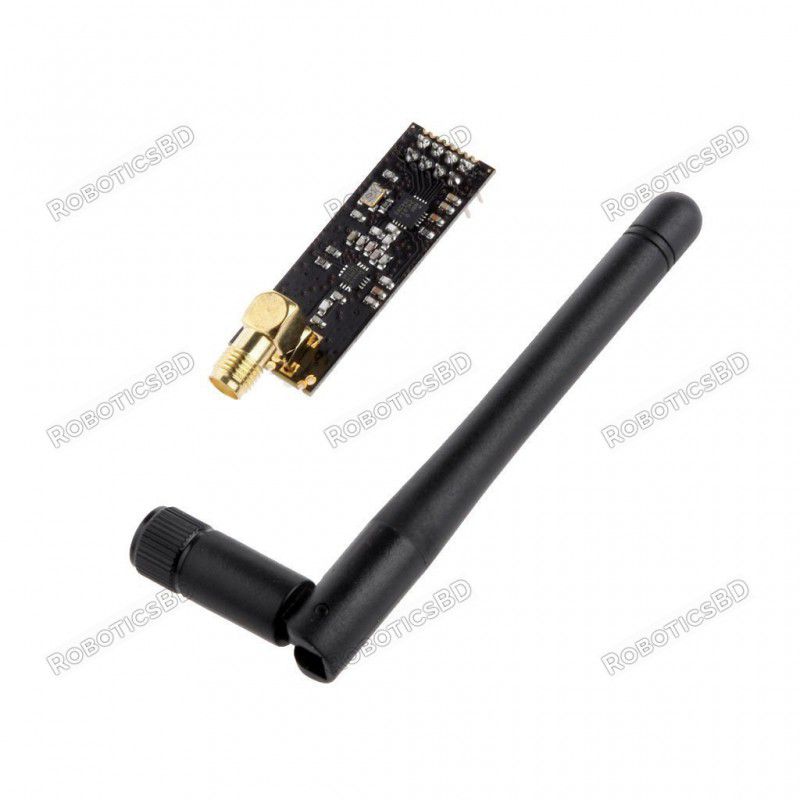

1 x 2.4GHz NRF24L01 Transceiver module.
1 x SMA Antenna.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of NRF24L01+PA+LNA 2.4GHz SMA Antenna Wireless Transceiver Module in Bangladesh is BDT 350 You can buy the NRF24L01+PA+LNA 2.4GHz SMA Antenna Wireless Transceiver Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
