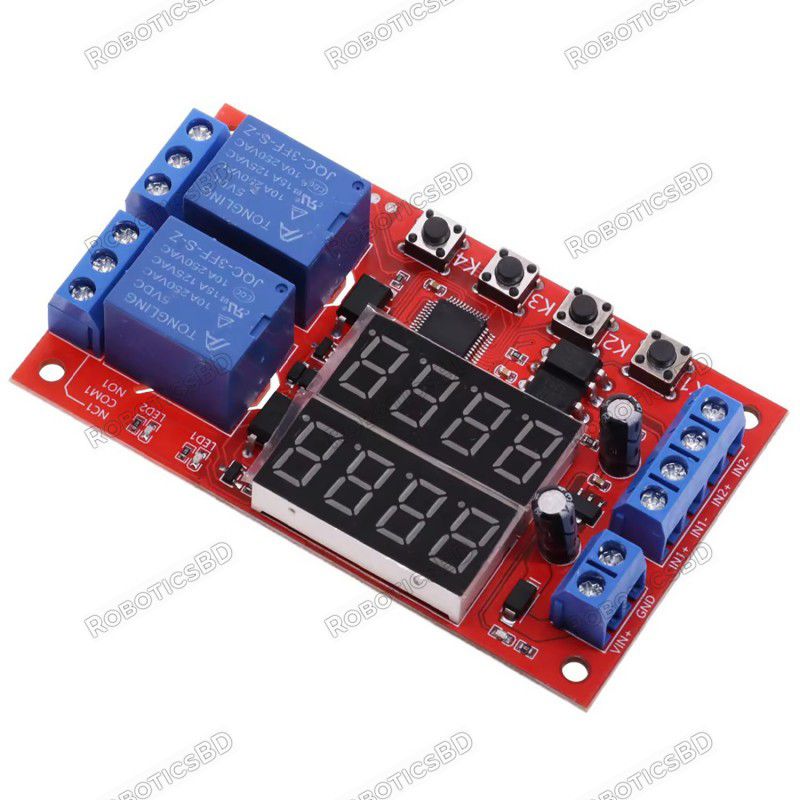

The Adjustable Delay Timer Dual Relay with LED Display is a highly versatile and reliable timing module designed for precision control over two independent devices. Featuring an adjustable delay time and dual relay design, this module allows for custom automation, making it perfect for a wide range of DIY projects, industrial automation, and home applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The Adjustable Delay Timer Dual Relay with LED Display is a highly versatile and reliable timing module designed for precision control over two independent devices. Featuring an adjustable delay time and dual relay design, this module allows for custom automation, making it perfect for a wide range of DIY projects, industrial automation, and home applications.
With a clear LED display, it provides an intuitive interface for setting and monitoring delay times. Supporting a wide range of input voltages (DC 24V) and a maximum output of 250V/10A, this timer ensures flexibility and durability. Built-in protection features, including overvoltage and overcurrent protection, enhance its longevity and reliability.
✔ Dual Relay Design – Control two separate devices with independent settings
✔ Wide Time Range – Adjustable delay from 0.01 seconds to 9990 minutes
✔ User-Friendly LED Display – Provides clear status updates and easy configuration
✔ Multiple Input Options – Supports switching signals, high/low-level signals
✔ High Power Handling – Supports DC/AC loads up to 10A
✔ Built-In Protection – Anti-reverse connection & anti-surge voltage protection
✔ Versatile Applications – Ideal for motors, pumps, solenoid valves, LED lighting, and automation systems
| Specification | Details |
|---|---|
| Operating Voltage | 24V |
| Output Power | Supports DC or AC loads within 10A |
| Time Range | 0.01 Seconds – 9990 Minutes (Adjustable) |
| Signal Support | Switching Signal or High/Low-Level Signal |
| Protection Features | Anti-reverse connection, anti-surge voltage protection |
| Relay Channels | 2 (Dual Relay Design) |
| Product Functions | Inching, self-locking, delay, timed cycle control, and more |
| Application Areas | Motor control, LED lighting, water pumps, solenoid valves, home automation, industrial automation |
✔ Motor Control – Set delays for starting/stopping motors
✔ Lighting Systems – Automate LEDs, lamps, and smart lighting setups
✔ Water Pumps & Solenoids – Control irrigation, water flow, and industrial processes
✔ Home & Industrial Automation – Perfect for time-based automation projects
✔ DIY & Electronics Projects – Ideal for makers and engineers building custom setups
✅ 1 x Adjustable Delay Timer Dual Relay with LED Display 24V
✅ 1 x User Manual for Setup & Configuration
The latest price of Adjustable Delay Timer Dual Relay with LED Display 24V in Bangladesh is BDT 890 You can buy the Adjustable Delay Timer Dual Relay with LED Display 24V at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
