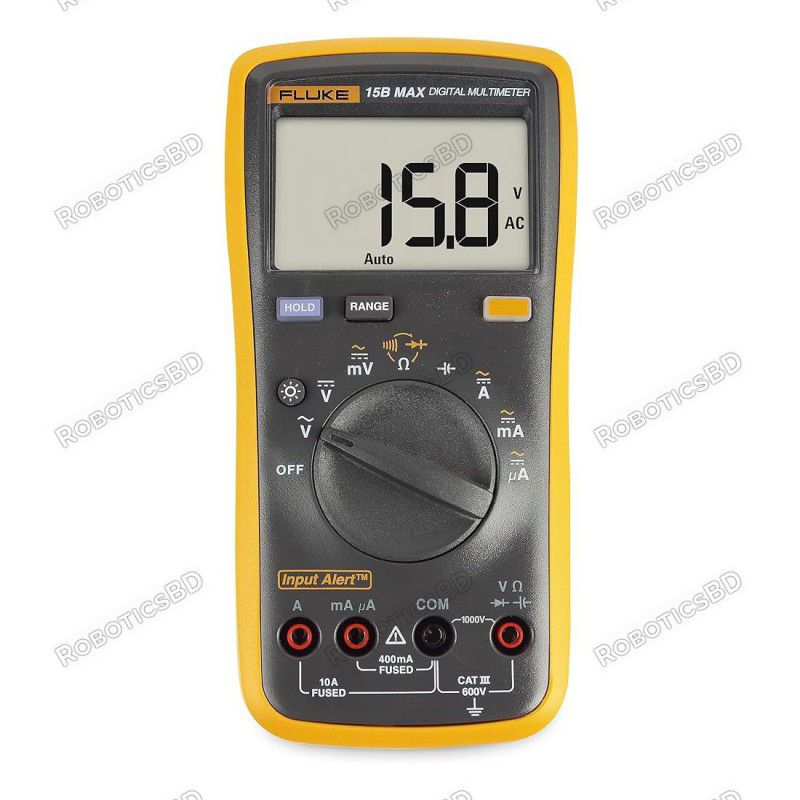

The Fluke 15B MAX is a reliable and economical digital multimeter built for professionals and hobbyists who demand precision, safety, and ease of use in their daily measurements. Building upon the legacy of the Fluke 15B+, this upgraded model integrates essential features such as input alert alarms and fine-tipped test leads, while maintaining the trusted accuracy and ruggedness that Fluke is known for. It's an ideal choice for electrical maintenance, circuit diagnostics, and electronics prototyping.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The Fluke 15B MAX is a reliable and economical digital multimeter built for professionals and hobbyists who demand precision, safety, and ease of use in their daily measurements. Building upon the legacy of the Fluke 15B+, this upgraded model integrates essential features such as input alert alarms and fine-tipped test leads, while maintaining the trusted accuracy and ruggedness that Fluke is known for. It's an ideal choice for electrical maintenance, circuit diagnostics, and electronics prototyping.
Audible and Visual Alarm for incorrect input connections, reducing the risk of measurement errors.
Auto Wake Function: Wake the meter from sleep mode by pressing any button, improving workflow efficiency.
Fine-Tipped Test Leads: Designed for precise circuit board testing and delicate component probing.
IP40 Rated: Dust-resistant for harsh environments.
CAT III 600V Safety Rated: Built to meet international safety standards for reliable usage in industrial environments.
Long Battery Life: Up to 500 hours of continuous use on two standard AA batteries.
| Feature | Specification |
|---|---|
| Display Count | 6000 counts, updates 3/sec |
| Max Voltage (Terminal to Earth) | 600 V |
| Max Differential Voltage (V-COM) | 1000 V |
| Battery Type | 2 x AA (IEC LR6) |
| Battery Life | Minimum 500 hours |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -30 °C to 60 °C |
| Relative Humidity | ≤90% RH at 10 °C to 30 °C, ≤75% at 30–40 °C |
| Altitude (Operation / Storage) | 2000 m / 12000 m |
| Temperature Coefficient | 0.1 x (specified accuracy)/°C |
| Fuse Protection | 440mA/11A 1000V fast-blow (Fluke-specific) |
| Dimensions | 183mm x 91mm x 49.5mm |
| Weight | 455g |
| Ingress Protection | IP40 |
| Safety Standard Compliance | IEC 61010-1, IEC 61010-2-030 CAT III 600V |
| Electromagnetic Compatibility | IEC 61326-1 Portable (Class A Equipment) |
Electrical installation and troubleshooting
Industrial equipment maintenance
Circuit board testing
Educational and lab use
Electronics prototyping
1 x Fluke 15B MAX Digital Multimeter
1 x Set of fine-tipped test leads
2 x AA Batteries (pre-installed)
1 x User Manual
The Fluke 15B MAX offers the perfect blend of affordability, precision, and reliability. With trusted Fluke quality and essential safety features, it's an excellent investment for technicians, engineers, students, and makers alike.
Take control of your measurements—get the Fluke 15B MAX today and enjoy accuracy, safety, and efficiency in one compact device!
The latest price of Fluke 15B MAX Economical Digital Multimeter in Bangladesh is BDT 14,790 You can buy the Fluke 15B MAX Economical Digital Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
