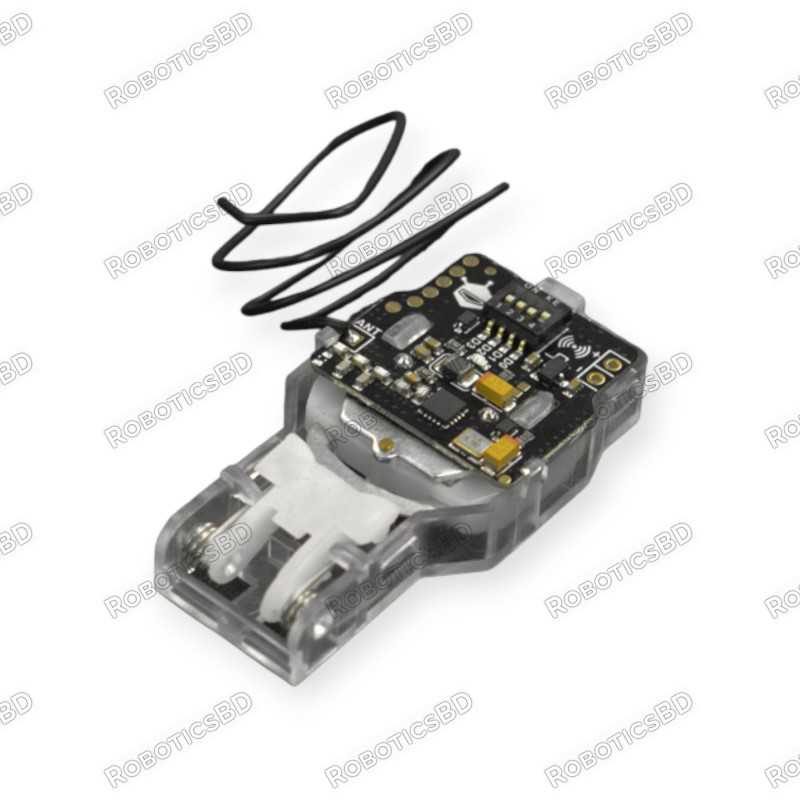

The Self-powered Wireless Switch (433MHz) is an innovative, battery-free solution designed to transmit wireless signals using kinetic energy from a button press. Equipped with a micro-generator and RF circuit, this switch eliminates the need for batteries, offering an eco-friendly and maintenance-free alternative for long-term applications. Its strong signal penetration and compatibility with EV1527 decoding receivers make it ideal for wireless doorbells, wall switches, pagers, and more. Compact and robust, it supports up to 15 adjustable states and 100,000 press cycles, ensuring reliability and sustainability in various environments. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Working Frequency | 433MHz |
| Transmission Rate | 10kbps |
| Encoding Format | EV1527 |
| Output Power | 13dBm |
| Modulation Method | OOK |
| Power Generation Energy | 600uJ |
| Module Dimensions | 47x25x11mm (1.85"x0.98"x0.43") |
| Press Down Force | 1800g (typical) |
| Action Method | Automatically rebounds after pressing |
| Action Distance | 2.6mm (endpoint) |
| Press Frequency | Max 4 presses per second |
| Stable Transmission Distance | 40m indoors |
| Distance Test Conditions | Antenna straightened with compatible receiver |
| Shipment Weight | 0.024 kg |
| Shipment Dimensions | 6 x 6 x 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Self-powered Wireless Switch 433Mhz
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Self-powered Wireless Switch 433Mhz in Bangladesh is BDT 1,350 You can buy the Self-powered Wireless Switch 433Mhz at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
