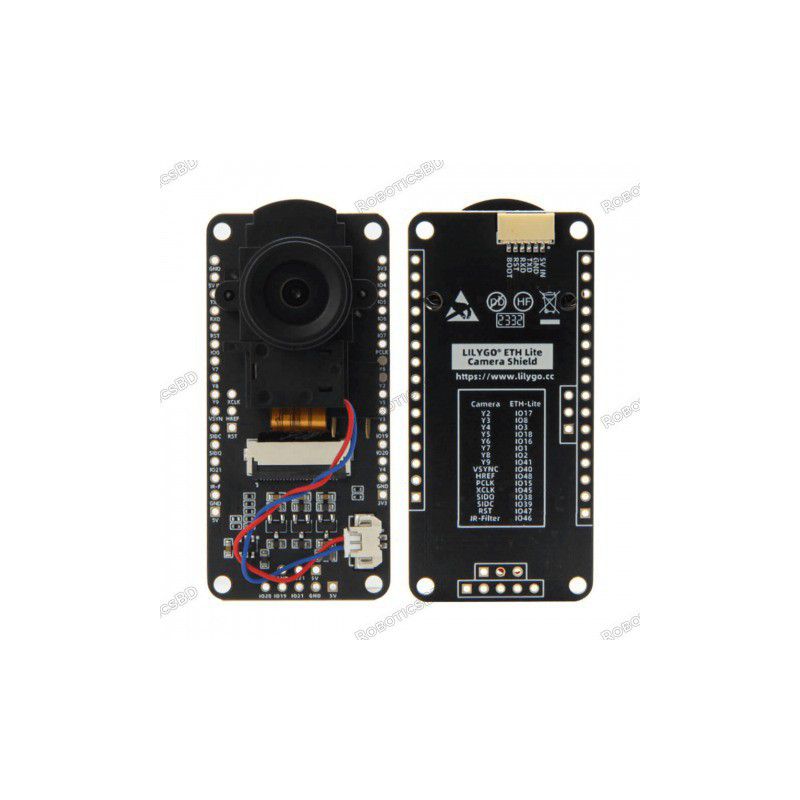

The LILYGO T-ETH Lite ESP32-S3 Camera Shield H683 is a high-performance expansion module crafted for the T-ETH Lite development board. By integrating camera support, Ethernet connectivity, and wireless communication capabilities, this shield is an ideal solution for advanced IoT, surveillance, and machine vision applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The LILYGO T-ETH Lite ESP32-S3 Camera Shield H683 is a high-performance expansion module crafted for the T-ETH Lite development board. By integrating camera support, Ethernet connectivity, and wireless communication capabilities, this shield is an ideal solution for advanced IoT, surveillance, and machine vision applications.
Designed with flexibility in mind, the Camera Shield H683 supports both the OV2640 (2MP) and OV5640 (5MP) camera modules, offering high-quality image capture. It also features a robust W5500 Ethernet module for stable wired connections and dual-mode Wi-Fi and Bluetooth 5 (LE) for wireless communication, providing developers with extensive networking options. The shield is compatible with both ESP-IDF and Arduino IDE, enabling easy and flexible programming.
Camera Compatibility: Supports OV2640 (2MP) and OV5640 (5MP) camera modules for high-quality image and video capture.
Ethernet Connectivity: Equipped with the W5500 Ethernet module for reliable and high-speed wired communication.
Wireless Communication: Supports Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) for versatile wireless networking.
Power over Ethernet (PoE): Optional PoE support simplifies deployment by combining power and data transmission over a single Ethernet cable.
Flexible Development: Compatible with ESP-IDF and Arduino IDE development environments.
Expandability: Supports PoE shields and LILYGO expansion modules for additional functionality.
| Feature | Specification |
|---|---|
| Microcontroller | ESP32-S3 |
| Ethernet Module | W5500 Ethernet |
| Supported Camera Modules | OV2640 (2MP), OV5640 (5MP) |
| Connectivity | Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE) |
| Power Input | 5V via USB or optional PoE |
| Programming Frameworks | ESP-IDF, Arduino IDE |
| Compatible Shields | PoE shields, LILYGO expansion modules |
Surveillance Systems: Ideal for IP camera setups and security monitoring.
IoT Projects: Enables real-time image or video streaming for smart devices.
Machine Vision: Supports applications in object recognition, process automation, and industrial monitoring.
Multimedia Devices: Perfect for developing smart photo and video capture solutions.
Hardware Setup: Attach the Camera Shield securely to the T-ETH Lite development board.
Camera Installation: Connect a compatible OV2640 or OV5640 camera module to the shield.
Power Supply: Power the system using a 5V USB input or an optional PoE Ethernet connection.
Software Configuration: Program the board via ESP-IDF or Arduino IDE with the necessary libraries and drivers.
Network Setup: Configure Ethernet or Wi-Fi settings for seamless communication.
1 x LILYGO T-ETH Lite ESP32-S3 Camera Shield H683
1 x 3-Pin Female Header
1 x 15-Pin Female Header
1 x 16-Pin Female Header
Enhances development possibilities with camera and network capabilities
Compact, expandable, and flexible for a wide range of smart device projects
Reliable and powerful with wired and wireless communication support
Easy integration with ESP32-S3 based development environments
Expand your IoT and machine vision projects today with the powerful and versatile LILYGO T-ETH Lite ESP32-S3 Camera Shield H683.
Order now and start building smarter, more connected applications!
The latest price of LILYGO T-ETH Lite ESP32-S3 Camera Shield H683 in Bangladesh is BDT 1,890 You can buy the LILYGO T-ETH Lite ESP32-S3 Camera Shield H683 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
