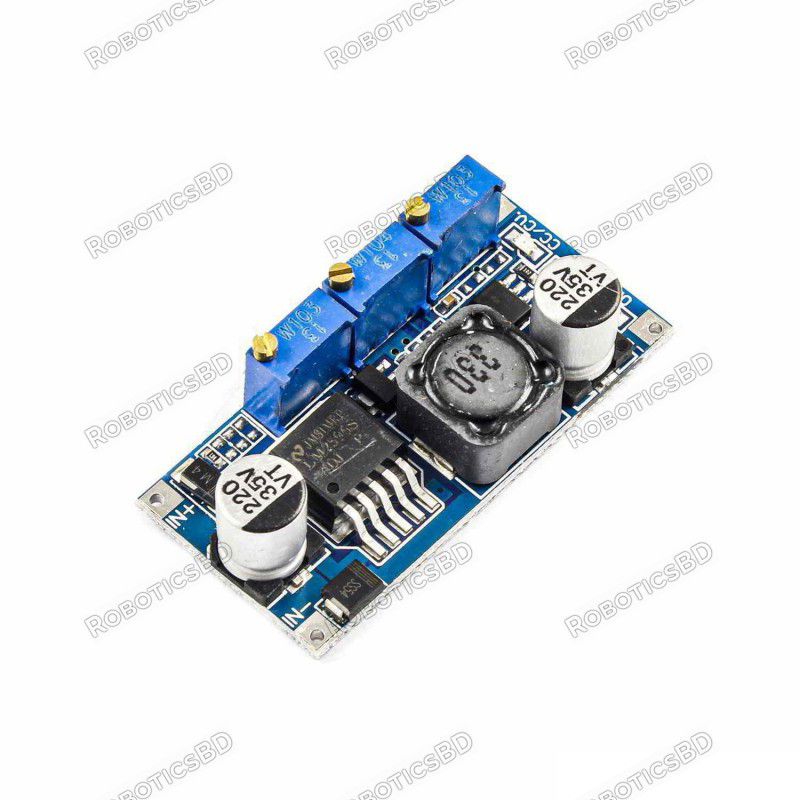

The LM2596S Step-Down Constant Current Voltage Driver Module is a versatile and efficient voltage regulation module designed for applications requiring both constant current and adjustable output voltage. This module builds upon the standard LM2596 design but adds constant current functionality, making it ideal for applications like LED driving, battery charging, and power regulation. With high efficiency, adjustable output, and protection features, this module ensures reliable performance in various electronics projects.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The LM2596S Step-Down Constant Current Voltage Driver Module is a versatile and efficient voltage regulation module designed for applications requiring both constant current and adjustable output voltage. This module builds upon the standard LM2596 design but adds constant current functionality, making it ideal for applications like LED driving, battery charging, and power regulation. With high efficiency, adjustable output, and protection features, this module ensures reliable performance in various electronics projects.
✔ Wide Input Voltage Range – Accepts 4.5V to 40V DC, compatible with various power sources
✔ Adjustable Output Voltage – 1.2V to 37V DC, set using the onboard potentiometer
✔ Constant Current Mode – Supports 100mA to 3A adjustable current
✔ High Efficiency – Up to 92% efficiency, minimizing power losses
✔ Protection Features – Over-temperature, over-current, and short-circuit protection (on some models)
✔ Stable Power Output – Low output ripple (~30mV) ensures clean and reliable power
✔ Switching Frequency – 150 kHz operation, reducing heat generation
✔ Cooling and Mounting – Natural convection cooling with mounting holes for secure attachment
| Parameter | Specification |
|---|---|
| Module Type | Step-Down (Buck) Constant Current & Voltage |
| Model | LM2596S |
| Input Voltage Range | 4.5V - 40V DC |
| Output Voltage Range | 1.2V - 37V DC (Adjustable) |
| Output Current Range | 100mA - 3A (Adjustable) |
| Output Power | Maximum 15W |
| Efficiency | Up to 92% |
| Switching Frequency | ~150 kHz |
| Output Ripple | ~30mV |
| Protection Features | Over-Temperature, Over-Current, Short-Circuit Protection (varies by model) |
| Operating Temperature | -40°C to +85°C |
| Cooling | Natural Convection |
| Mounting | Screw holes for secure attachment |
| Dimensions | 48mm × 23mm × 14mm |
Power the Module
Adjust Output Voltage & Current
Monitor Power Output
Consider Cooling
Connect to Your Circuit
✔ LED Lighting – Drives LED arrays with stable current supply
✔ Battery Charging – Regulates charging voltages and currents
✔ Constant Voltage/Current Power Supplies – Adjustable power sources for electronics
✔ Motor Control – Adjustable voltage for motor speed control
✔ DIY Electronics – Suitable for custom power supply solutions
✅ Adjustable & Versatile – Works in both constant voltage and constant current modes
✅ High Efficiency – 92% efficiency reduces power waste
✅ Compact & Durable – Small size with screw mounting holes for easy installation
✅ Built-in Protection – Prevents damage from over-current, over-temperature, and short circuits
The latest price of LM2596S Step-Down Constant Current Voltage Driver Module - 3A in Bangladesh is BDT 250 You can buy the LM2596S Step-Down Constant Current Voltage Driver Module - 3A at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
