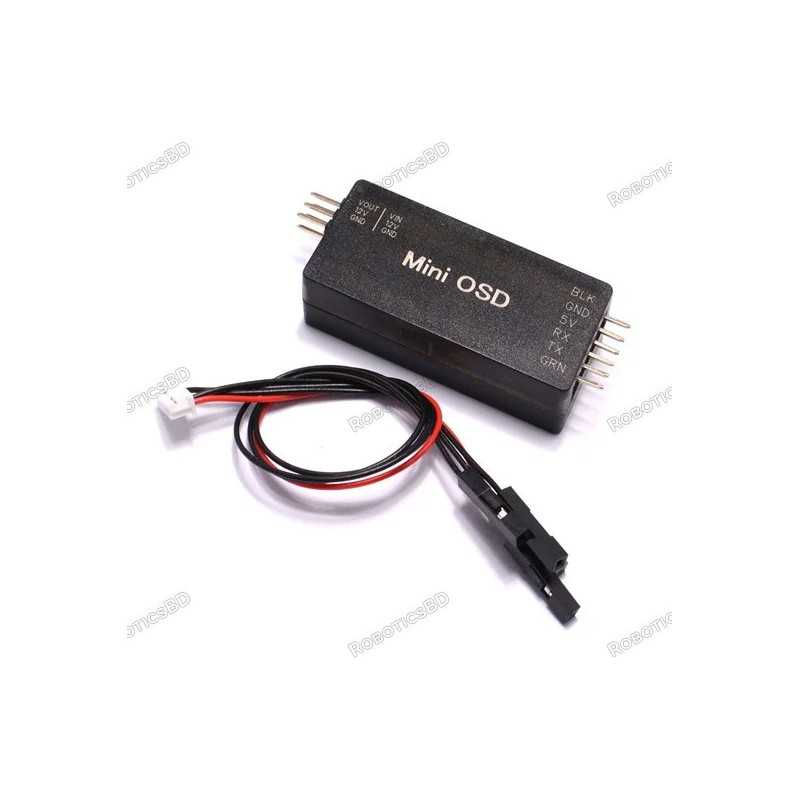

Mini OSD for Pixhawk Flight Controller has a companion OSD board called Mini OSD. It reads all the MAV Link data in the APM telemetry stream and overlays it on the video stream if you’re using an onboard camera and wireless video transmitter. This is useful if you’re flying in First Person View (FPV) mode or don’t want to use a laptop at the field to see your telemetry data in the Mission Planner. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Compatible flight controller:
APM2.5
APM2.6
APM2.8
Pixhawk PX4
Important Note:
You cannot connect the OSD when your APM 2 is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Arduino bootloader | ATmega328P |
| On-screen display | MAX7456 |
| Input supply | 12 V |
| Cable length (mm) | 100 |
| Length (mm) | 58 |
| Width (mm) | 22 |
| Height (mm) | 12 |
| Weight (gm) | 15 |
| Shipment Weight | 0.018 kg |
| Shipment Dimensions | 6 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Mini OSD for the Pixhawk Flight Controller module.
1 x Connecting Cables.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Mini OSD Module for APM PIX Pixhawk Pixhack Flight Control Board in Bangladesh is BDT 2,280 You can buy the Mini OSD Module for APM PIX Pixhawk Pixhack Flight Control Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
