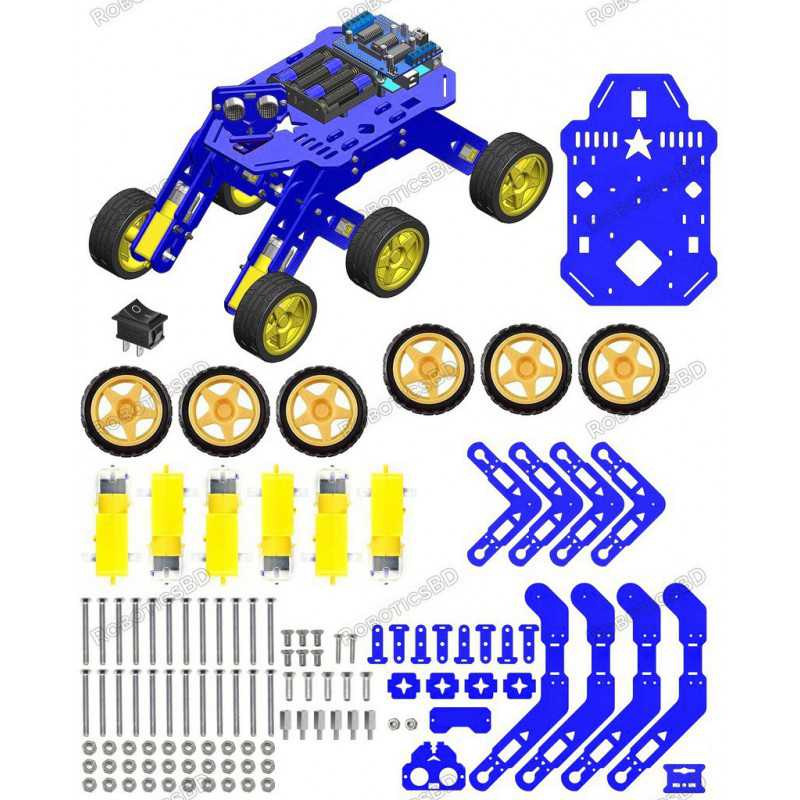

The 6WD Robotics Rover DIY Arduino Based Smart Wireless Robotics Kit is the perfect platform for building your own smart robotic rover. It comes with all the necessary components, including a high-quality cast acrylic chassis, 6 dual shaft BO geared motors, 6 plastic wheels, a Bluetooth module, an Arduino Nano board, and a variety of sensors and actuators. The kit is also compatible with the Android app, which allows you to control your rover wirelessly. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- DIY Arduino Based Robotics Kit (Unassembled)
- 6 Wheel Drive helpful for staircase Robotics & similar to all tertiary robotics
- Chassis made from High-Quality Cast Acrylic
- Bluetooth Based Wireless Android app-controlled
- Users can build 20+ different projects ex: staircase, obstacle avoiding, wireless controllable, etc.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Building smart robotic rovers
- Learning about robotics and electronics
- Experimenting with new technologies
- Developing educational learning kits
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Material |
Blue Acrylic |
| Motor Type |
Dual shaft BO geared motor |
| Wheel Size |
4.8cm |
| Chassis Size |
20x14.2cm |
| Bluetooth Module |
Yes |
| Arduino Board |
Arduino Nano/Uno/Mega |
| Sensors and Actuators |
Variety of sensors and actuators included |
| Android App Compatibility |
Yes |
| Shipment Weight |
0.305 kg |
| Shipment Dimensions |
15 x 15 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
For BO Motor:
- Operating Voltage: 3V~6V DC
- Gear Ratio 1:48
- No-load speed(5V): about 208RPM
- Rated Torque: 0.8 Kg.cm @ 5V
- Load current: 170mA (when it is 4.5V)
- Size: 70 x 23 x 18 mm
- Weight:28g
- Shaft Length: 10 mm
- Shaft Type: 6 mm, Double-D
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
For Wheel:
- Loading Capacity: Max 2.5Kg
- Double D-hole For BO Motor: 6 mm
- Weight: 34g
- Wheel Diameter: 65 mm
- Color: Black (Tyre), Yellow (Rim)
- Wheel width: 27 mm
- Body Material: Plastic
- Grip Material: Rubber. RoboticsBD
Package Includes:
1 x 6WD Robotics Rover DIY Chassis With Motors & Wheels
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
What is the price of 6WD Robotics Rover DIY Blue Chassis With Motors & Wheels in Bangladesh?
The latest price of 6WD Robotics Rover DIY Blue Chassis With Motors & Wheels in Bangladesh is BDT 2,100 You can buy the 6WD Robotics Rover DIY Blue Chassis With Motors & Wheels at best price from our RoboticsBD or visit RoboticsBD Office.
|
