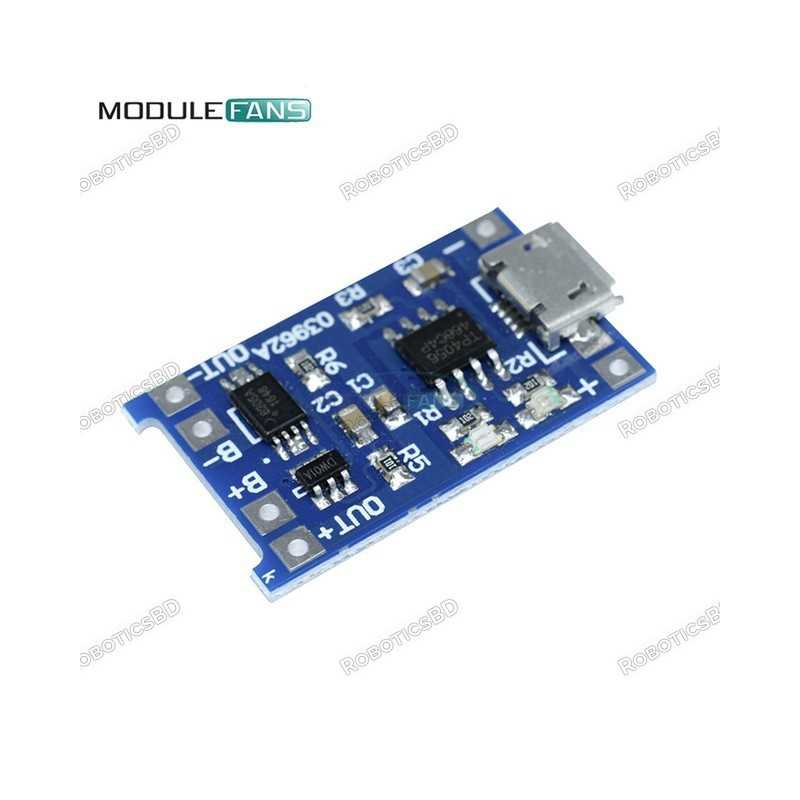

This TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished. RoboticsBD
Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1. Ampere meter can only be connected to a 5v input end of the module.
2. It is better than the charging current is 37% of the battery capacity. If you charge the battery of 1000mAh, a current of 400mAh is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to the chip.
6. NO Reverse polarity.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Charging accuracy (%) | 1.5 |
| Charging method | Linear |
| Full Charge Voltage (V) | 4.2 |
| Over-Current Protection (A) | 3 |
| Under-Voltage Protection (V) | 2.5 |
| Input Voltage (V) | 4.5-5.5 |
| Rated Power (W) | 4.2 |
| Operating Temperature (°C) | -10 to 85 |
| Length (mm) | 25 |
| Width (mm) | 20 |
| Height (mm) | 6 |
| Weight (gm) | 3 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x TP4056 Lithium Battery Charger Module With Protection Dual Functions.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of TP4056 Lithium Battery Charger Module With Protection Dual Functions in Bangladesh is BDT 32 You can buy the TP4056 Lithium Battery Charger Module With Protection Dual Functions at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
