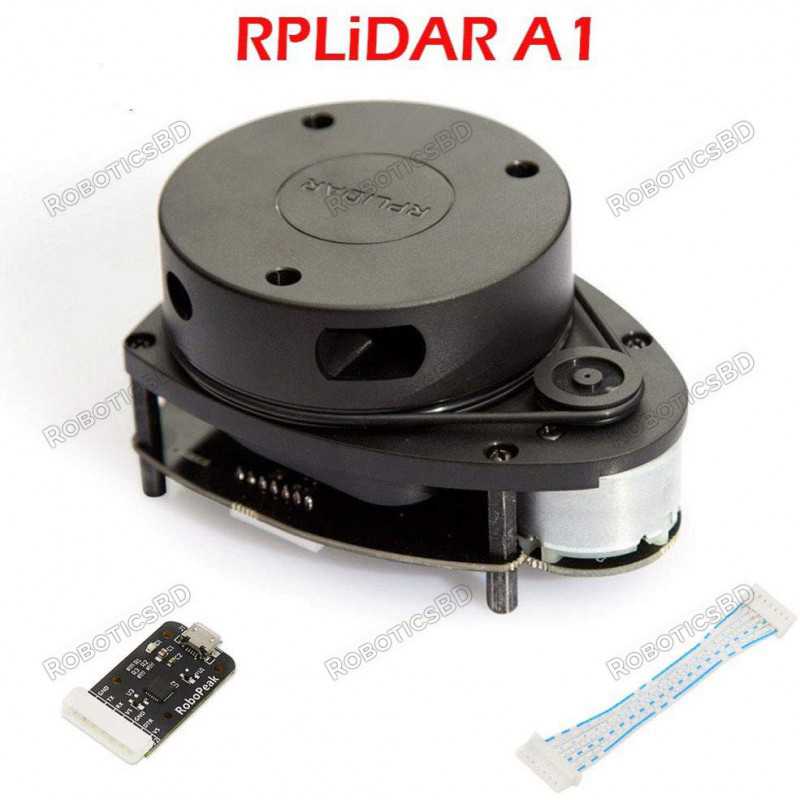

Slamtec RPLIDAR A1 2D 360 Degree 12 Meters LIDAR Sensor

RBD-1205
  • Distance Range (Radius): 0.15m to 6m, white objects (Diameter Range – 12m)
  • Angular Range: 0 ~ 360º
  • Distance Resolution: < 0.5mm
  • Angular Resolution: <= 1 º
  • Sample Duration: 0.5 ms
  • Sample Frequency: >=8000 Hz
  • Scan Rate: 1 ~ 10Hz, Typical 5.5Hz
BDT 19,750
rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4
Quantity
In-Stock

21 people have purchased this item recently
50 people added this item to the cart in last 10 days
Only 3 items left in stock in Uttara, Dhaka
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

RPLiDAR A1M8 360 Degree Laser Range Finder – 6m (Radius Range) is a low-cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360-degree scan within a 6-meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling. RoboticsBD

RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor and outdoor environments without sunlight. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

  1. Home service /cleaning robot navigation and localization.
  2. General robot navigation and localization.
  3. Smart toy localization and obstacle avoidance.
  4. Environment scanning and 3D re-modeling.
  5. General simultaneous localization and mapping

RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform 360degree scan within 6meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling. RPLIDAR A1’s scanning frequency reached 5.5 hz when sampling 360 points each round. And it can be configured up to 10 hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without sunlight. Features: Measures distance data in more than 8000 times/s 360 Degree Omnidirectional Laser Range Scanning 8000 times sample rate, the highest in the current economical LIDAR industry OPTMAG Original Design, prolong the life-span Configurable Scan Rate from 2-10Hz Ideal for Robot Navigation and Localization Plug and Play RoboticsBD

FSD-05

Features:

  1. Measuring distance: Up to 6 meters (Radius).
  2. Measures distance data in more than 8000 times/s.
  3. 360 Degree Omnidirectional Laser Range Scanning.
  4. 8000 times sample rate, the highest in the current economical LIDAR industry.
  5. OPTMAG Original Design, prolong the lifespan.
  6. Configurable Scan Rate from 2-10Hz.
  7. Ideal for Robot Navigation and Localization.
  8. Plug and Play.

11111123478



10_11e14__15_169

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model RP LIDAR A1M8
Distance range 0.2 – 6m (Radius)
0.2 – 12m (Diameter)
Angular range 0-360°
Distance resolution <0.5mm (1% of the distance)
Angular resolution (=<1°)
Sample duration 0.125 Mili Seconds
Sample frequency >=8000 Hz
Standoffs M2.5 x 15mm
Scan rate 5.5Hz
Length (mm) 60
Width (mm) 70
Height (mm) 99
Weight (gm) 170
Shipment Weight 0.2 kg
Shipment Dimensions 8 × 9 × 8 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. SLAMTEC A1M8 Rplidar A1 Low Cost 360 Degree Laser Range Scanner User Manual
  2. Datasheet
  3. Slamtec Rplidar A1
  4. Arduino Interfacing
  5. Github Backup

Package Includes:

1 x RP LIDAR A1M8 360 Degrees Laser Range Finder.

1 x Interfacing Controller and Connecting Cable.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of Slamtec RPLIDAR A1 2D 360 Degree 12 Meters LIDAR Sensor in Bangladesh?

The latest price of Slamtec RPLIDAR A1 2D 360 Degree 12 Meters LIDAR Sensor in Bangladesh is BDT 19,750 You can buy the Slamtec RPLIDAR A1 2D 360 Degree 12 Meters LIDAR Sensor at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1205
3 Items
Filter reviews
(3)
(1)
(0)
(0)
(0)
(0)
Reset

All product reviews are from verified purchases and are comply with DIRECTIVE (EU) 2019/2161
Manager
rating
Good
প্রডাক্ট রিভিউ
rating
টাইমলি ডেলিভারি পাইছি, প্রোডাক্ট প্যকেজিং ভালো ছিল।
Lidar
rating
Good
Product review
rating
Product was working fine when checked. Thank you for bringing rare items
