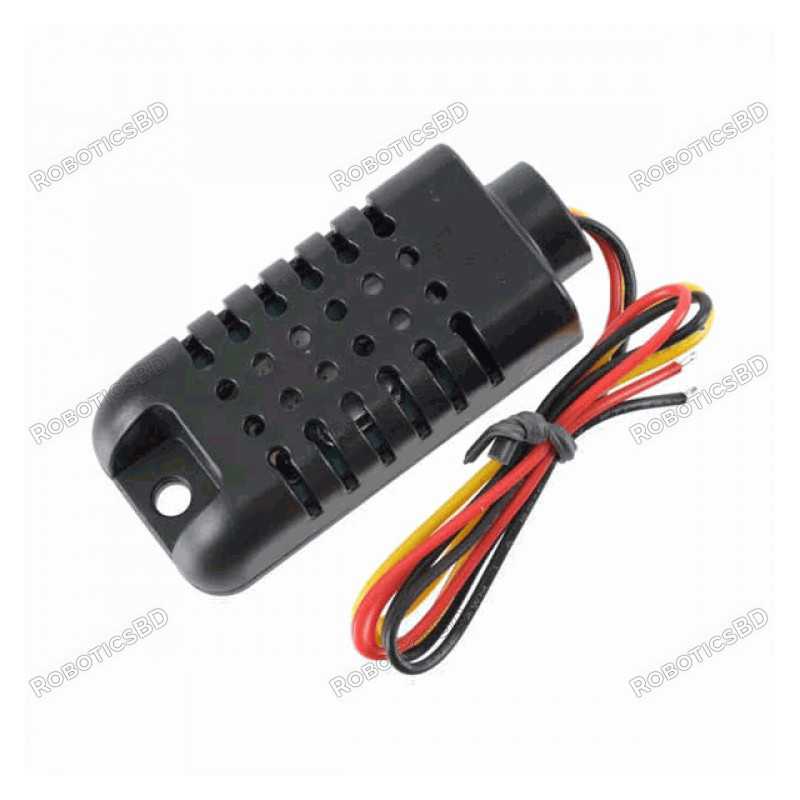

AM2301 Capacitive Digital Temperature & Humidity Sensor sensor is one of the commonest from the range of DHT temperature sensors; and boasts a relatively high-temperature measurement accuracy of 0.5°C in 0.1°C steps with a relative humidity accuracy of ± 3%.
It has only 3 wires, including power and ground, meaning only one digital pin is required to interface it to a microcontroller. For Arduino development platforms the sensor is very well supported by the DHT library available from the Arduino Playground website. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 4-pin package.
- Ultra-low-power.
- No additional components.
- Excellent long-term stability.
- All calibration, digital output.
- Completely interchangeable.
- Long-distance signal transmission.
- Relative humidity and temperature measurement.
Specifications:
- Model: AM2301
- Power supply: 3.3-5V DC
- Output signal: digital signal via single-bus
- Sensing element: Polymer humidity capacitor
- Measuring range: humidity 0-100%RH; temperature -40~80Celsius
- Accuracy: humidity +-3%RH(Max +-5%RH); temperature <+-1Celsius
- Resolution or sensitivity: humidity 0.1%RH; temperature 0.1Celsius
- Repeatability: humidity +-1%RH; temperature +-0.2Celsius
- Humidity hysteresis: +-0.3%RH
- Long-term Stability: +-0.5%RH/year
- Sensing period: Average: 2s
- Dimensions size 59*27*13.5mm
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
AM2301 |
| Supply Voltage (V) |
3.3 ~ 5 |
| Average Current Consumption (mA) |
300 |
| Humidity |
0 ~ 99.9 %RH |
| Precision |
3% RH |
| Output type |
Digital (1 wire) |
| Operating Temperature (Celsius) |
-20 ~ +60 |
| Cable Length (cm) |
20 |
| Length (mm) |
60 |
| Width (mm) |
27 |
| Height (mm) |
14 |
| Weight (gm) |
15 |
| Shipment Weight |
0.018 kg |
| Shipment Dimensions |
8 × 7 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- DHT21 AM2301 Temperature & Humidity Sensor (HCSENS0026)
- Humidity and Temperature
-
Package includes:
1 x DHT21 AM2301 Temperature & Humidity Sensor.
