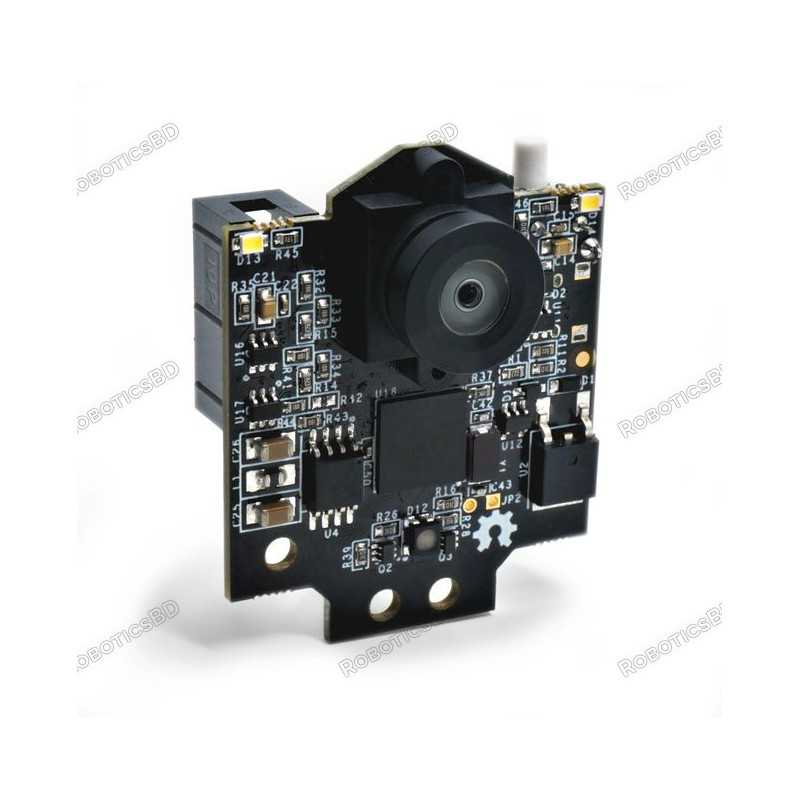

The Pixy2.1 CMUcam5 is the second version of Pixy. It's faster, smaller, and more capable than the original Pixy, adding line tracking/following algorithms as well as other features. Pixy2.1 CMUcam5 can detect lines, intersections and small barcodes, intended for line-following robots. RoboticsBD
The small, fast, easy-to-use, low-cost, readily-available vision system. Able to learn to detect objects that you teach it. Compatible with Arduino using the included cable. Also works with Raspberry Pi, BeagleBone and similar controllers. All libraries for Arduino, Raspberry Pi, etc. are provided. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Pixy2.1 detects lines, intersections and small barcodes, intended for line-following robots.
- Improved framerate – 60 frames-per-second.
- Tracking algorithms have been added to color-based object detection.
- Improved and simplified libraries for Arduino, Raspberry Pi, and other controllers.
- Integrated light source.
- C/C++ and Python are supported
- Communicates via one of several interfaces: SPI, I2C, UART, USB or analog/digital output
- Configuration utility runs on Windows, macOS, and Linux
- All software/firmware is open-source GNU-licensed
- All hardware documentation including schematics, bill of materials, PCB layout, etc. are provided
- Seven color signatures
- Hundreds of objects
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Lens type |
Standard M12 |
| Processor |
NXP LPC4330, 204 MHz, dual-core |
| Power Input |
USB input (5V) or unregulated input (6V to 10V) |
| Lens field-of-view |
80° horizontal, 40° vertical |
| RAM |
264K bytes |
| Flash |
2M bytes |
| Length (mm) |
38 |
| Width (mm) |
42 |
| Height (mm) |
15.3 |
| Weight (gm) |
70 |
| Shipment Weight |
0.075 kg |
| Shipment Dimensions |
6 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
The Pixy 2.1 camera isn't designed for high-quality photography. Its primary function is object recognition through its camera, so the images it captures might have a retro feel rather than the crispness of modern photography.
Sample Image:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Pixy Software
- Pixy Project
Package Includes:
1 x Pixy2.1 CMUcam5 Smart Vision Sensor
1 x Connecting IDC Cable.
1x Mounting Accessories.
