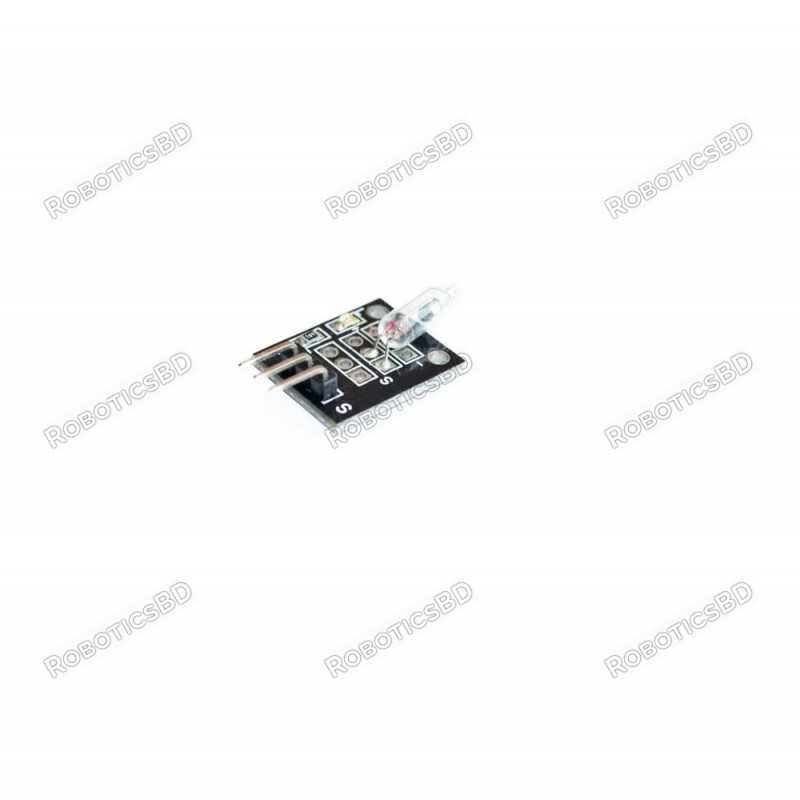

This module consists of a mercury switch, a 680Ω resistor and a LED that will light up when tilt is detected. The mercury ball will open/close the circuit when the module is rotated. Featured By RoboticsBD.
Mercury switch module and digital 13 interface comes with LED to build a simple circuit, the production of tilt lights with the digital 13 interfaces comes with the LED, the mercury tilt switch sensor access to digital 3 interfaces, when the mercury
tilt switch sensor has a button signal, LED light, and vice versa. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock
Connection Diagram:
| General Specification | |
| Operating Voltage | 3.3V to 5.5V |
| Length (mm) | 22 |
| Width (mm) | 24 |
| Height (mm) | 25 |
| Weight (gm) | 2 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
1 x Mercury Medallion Module
The latest price of Mercury Medallion Module in Bangladesh is BDT 69 You can buy the Mercury Medallion Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
