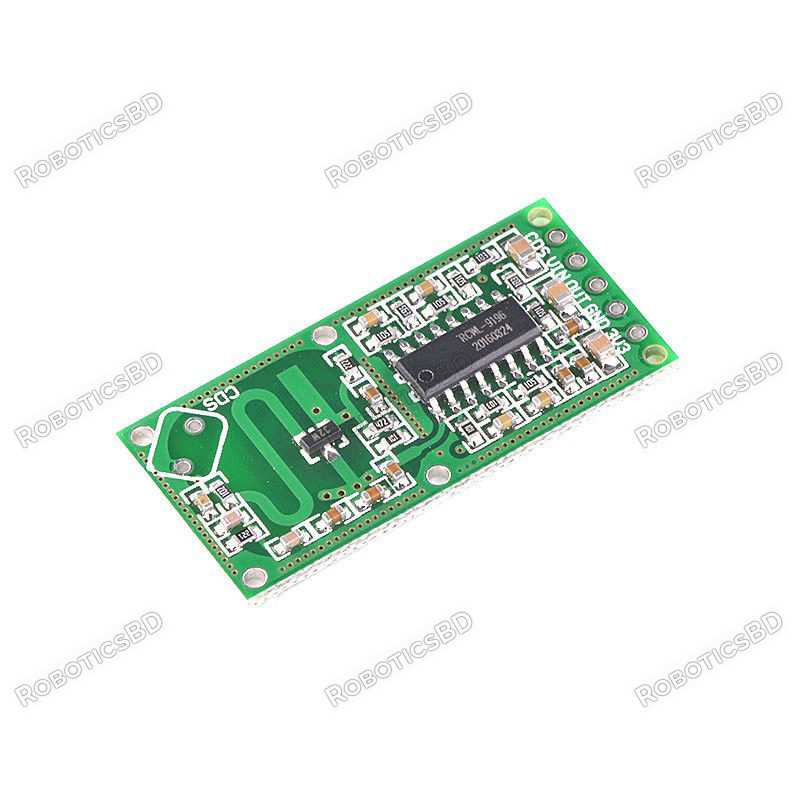

The RCWL-0516 Microwave Radar Sensor module has been designed as an alternative to the common PIR motion sensors widely used in burglar alarms and security lights. Like the PIR sensor, this sensor also detects only movements within its detection range. RoboticsBD
But instead of sniffing the blackbody radiation from a moving person, this sensor uses a “microwave Doppler radar” technique to detect moving objects. It has a sensitivity range of ~7 meters. When triggered, its TTL-level output (OUT) pin will switch from LOW (0 V) to HIGH (3.3 V) for a finite time (2 to 3 s) before returning to its idle (LOW) state. RoboticsBD
This flexible sensor module can easily be used in conjunction with many microcontrollers and even without a microcontroller at all. It can handle power supply inputs anywhere from 4 to 28 V.
The output pin can be utilized for a multitude of tasks, such as for driving an aural/visual indicator or even linking with the I/O of any 3-V microcontroller for further processing. During construction, avoid any metal part in front of the sensor module. Similarly, always keep a minimum of 1-cm clear space on the front and rear side of the module.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
CDS — Sensor disable input (low = disable)
VIN — 4- to 28-V DC supply input
OUT — HIGH (3.3 V) motion detected/LOW (0 V) idle
GND — Ground/0 V
3V3 — Regulated DC output (100 mA max)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Operating Voltage (VDC) | 4 ~ 28 |
| Max. Operating Current (mA) | 3 |
| Detecting Range | 5-9m |
| Transmitting Power | 20mW (typical); 30mW (max) |
| Output Voltage(V) | 3.2 ~ 3.4 |
| Output Voltage Driving Capacity | 100mA |
| Trigger Way | Repeat Trigger |
| Output Control Low Level | 0V |
| Output Control High Level | 3.3V |
| Operating Temperature (°C) | -20 to 80 |
| Length (mm) | 36 |
| Width (mm) | 17 |
| Height (mm) | 2 |
| Weight (gm) | 3 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 5 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x RCWL-0516 Microwave Radar Sensor Module Human Body Induction Switch Module.
