This Piezoelectric Humidifier is made of high-quality material, durable, anti-corrosion, anti-aging, and high hardness, great effect, and serve you for a long time.
With electronic high-frequency oscillation ( 2.4MHz), the liquid water molecules are processed into flowing mist and release a large number of negative ions, which react with smoke, dust, and the like floating in the air to cause precipitation.
It also can effectively remove harmful substances such as formaldehyde, carbon monoxide, and bacteria, so that the air can be purified and the disease can be reduced, keep your and your family’s health.
Low impedance, waveform is stable, high electromechanical conversion efficiency and low dielectric loss, this atomizer saves more energy than heated atomization.
Suitable for industry, warehousing, family, hotel, and so on. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Nominal Frequency | 2.4MHz |
| Adjustable Frequency Difference | 0.01MHz |
| Temperature Frequency Difference | 0.01MHz |
| Total Frequency Difference | 0.02MHz |
| Load Capacitance | 2200pF |
| Load Resonance Resistor | 350Ω |
| Excitation Level | 250mW |
| Reference Temperature | 26℃ |
| Insertion Loss | 3dB |
| Diameter | Atomizer: 1.58cm/0.62in; Sealing ring: 2.0cm/0.75in |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 5 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

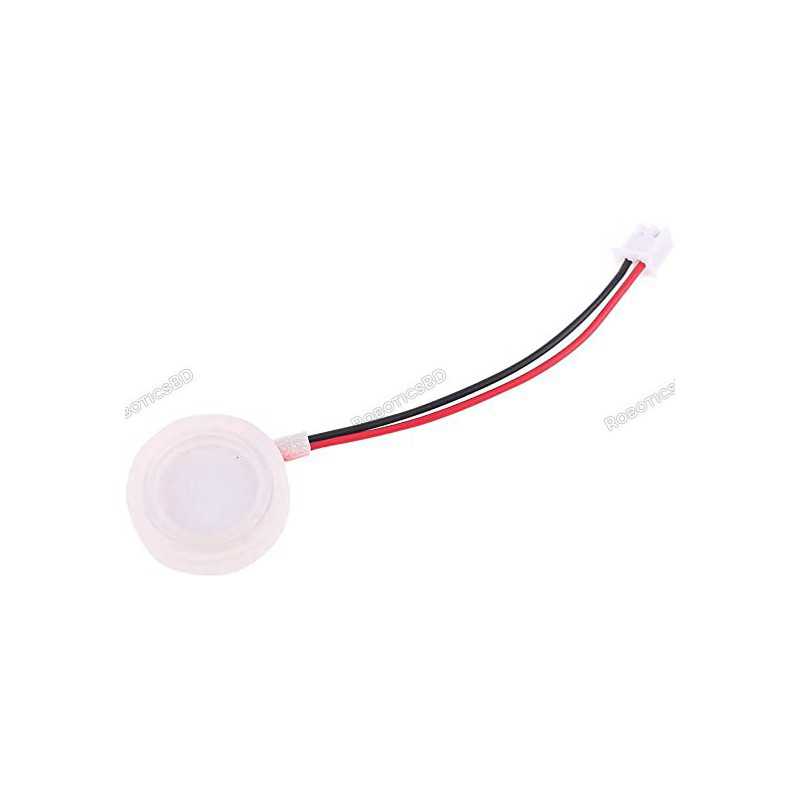

1 x 20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer in Bangladesh is BDT 199 You can buy the 20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
