79M09 is a voltage regulator integrated circuit. It is a member of 79xx series of fixed linear voltage regulator ICs. The voltage source in a circuit may have fluctuations and would not give the fixed voltage output. The voltage regulator IC maintains the output voltage at a constant value. The xx in 78xx indicates the fixed output voltage it is designed to provide. 7909 provides a regulated supply of -09 V and 1A current. Its additional features include internal thermal overload protection, short circuit protection and output transistor safe operating area compensation. RoboticsBD
The MC79M00 series of fixed output negative voltage regulators are intended as complements to the popular MC78M00 series devices. Available in fixed output voltage options of −5.0 V, −8.0 V, −12 V and −15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heatsinking, they can deliver output currents in excess of 0.5 A. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Package/Case | TO-220-3 |
| Minimum Supply Voltage (V) | – 7 |
| Max. Operating Current (mA) | 5 |
| Product Type | Linear Voltage Regulator |
| Product Series | 79XX |
| Operating Temperature Range (°C) | -20 to 120 |
| Dimensions (mm) LxWxH | 10.28 x 4.82 x 9.28 |
| Mounting Type | Through Hole |
| Polarity | Negative |
| Output Voltage | – 5 V |
| Output Current | 500 mA |
| Output Type | Fixed |
| Load Regulation | 100 mV |
| Line Regulation | 50 mV |
| Shipment Weight | 0.1 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

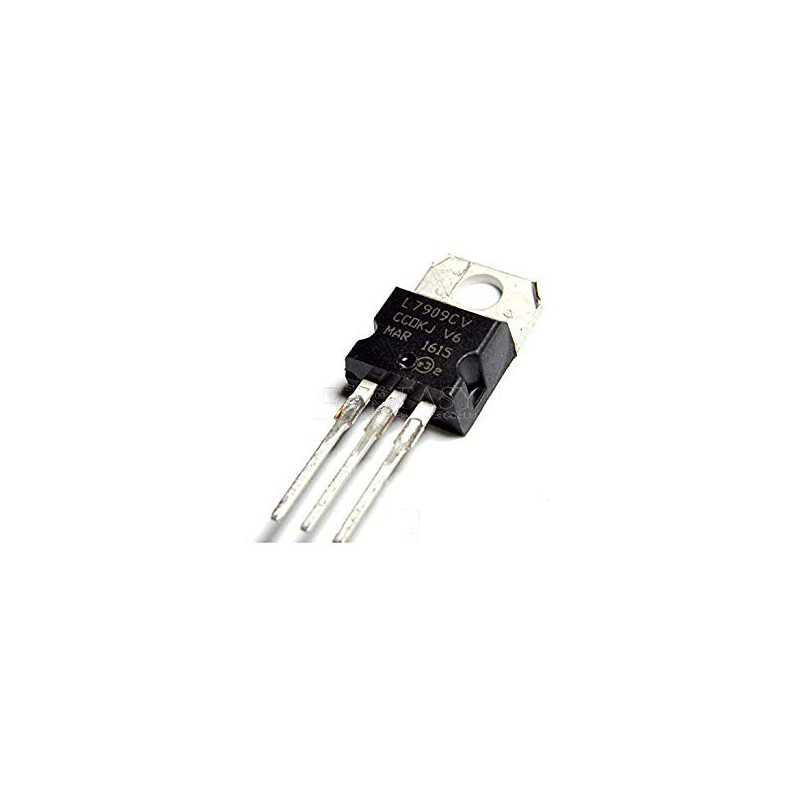

1 x L7909CV Negative Voltage Regulator.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of L7909CV Negative Voltage Regulator in Bangladesh is BDT 20 You can buy the L7909CV Negative Voltage Regulator at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
