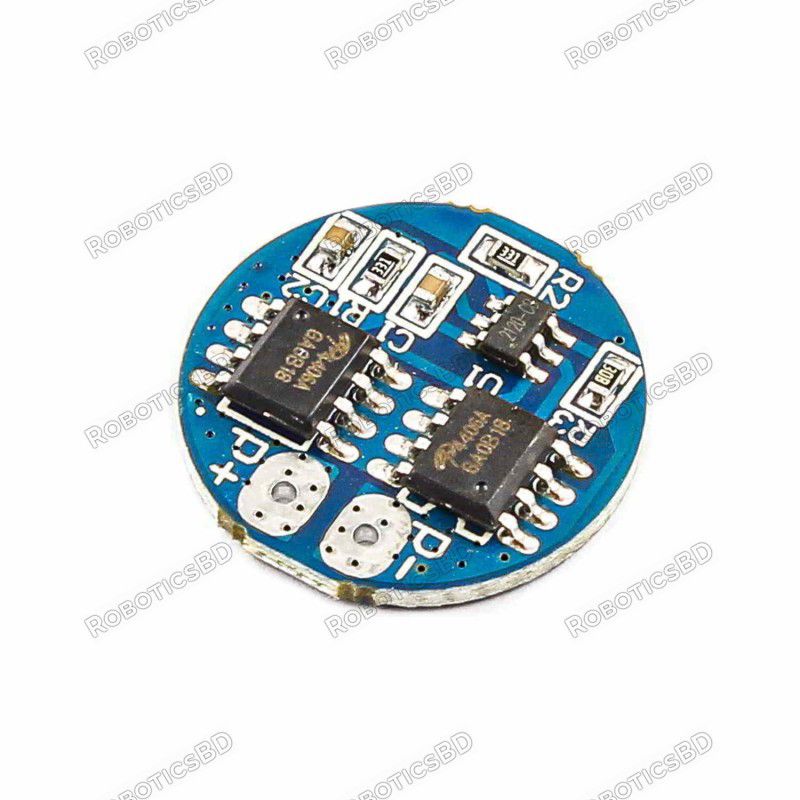

The 2S Round Lithium Battery Charging Protection Board is a vital safety component for 2-cell (2S) Li-ion or Li-Po battery packs, offering reliable management and protection during operation. Designed for a 7.4V nominal voltage and capable of handling up to 5A continuous discharge current, this BMS (Battery Management System) ensures the safe, stable, and efficient use of your battery packs.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The 2S Round Lithium Battery Charging Protection Board is a vital safety component for 2-cell (2S) Li-ion or Li-Po battery packs, offering reliable management and protection during operation. Designed for a 7.4V nominal voltage and capable of handling up to 5A continuous discharge current, this BMS (Battery Management System) ensures the safe, stable, and efficient use of your battery packs.
It provides essential features such as overcharge protection, over-discharge protection, short-circuit protection, and balanced charging, making it ideal for a wide range of applications including electric vehicles, portable battery packs, and solar energy storage systems.
Overcharge and Over-discharge Protection: Safeguards each cell to maximize battery lifespan and prevent damage.
Short-Circuit Protection: Protects against dangerous current surges.
Balanced Charging: Maintains uniform voltage across all cells for improved performance and extended battery life.
High Discharge Capability: Supports up to 5A continuous discharge, ideal for high-power applications.
Compact and Round Design: Easy to fit in space-constrained applications.
Nominal Voltage: 7.4V
Maximum Continuous Discharge Current: 5A
Battery Type: 2S (2 Series) Li-ion or Li-Po battery packs
Protection Features: Overcharge, Over-discharge, Short-circuit, Balanced Charging
Balancing Current: Up to 60mA per cell
Operating Temperature Range: -20°C to +60°C
Connect the negative terminal of the first battery to the B- pad (0V) and the positive terminal to the B1 pad (4.2V).
Connect the negative terminal of the second battery to the B1 pad (4.2V) and the positive terminal to the B+ pad (8.4V).
Use the P+ and P- pads for both charging and load connections.
Always connect in the specified order to prevent damage to the BMS.
Use a buck voltage module to adjust charging voltage and current to match the battery specifications before charging.
Note: This module provides protection functions only. Charging must be managed by an external charger or buck converter module.
Electric vehicles and e-bikes
Solar energy storage systems
Portable power banks and backup batteries
Robotics and mobile systems
DIY battery pack projects
1 x 2S Round Lithium Battery Charging Protection Board - 7.4V, 5A
Comprehensive battery protection with safe charge and discharge management
Supports high discharge currents for demanding applications
Maintains cell balance to extend overall battery life
Compact design for flexible integration
Ideal for both hobbyist and professional battery pack builders
Protect your battery investment and ensure reliable, safe operation with the 2S Round Lithium Battery Charging Protection Board - 7.4V, 5A.
Order now and power your projects with confidence and safety!
The latest price of 2S Round Lithium Battery Charging Protection Board - 7.4V, 5A in Bangladesh is BDT 100 You can buy the 2S Round Lithium Battery Charging Protection Board - 7.4V, 5A at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
