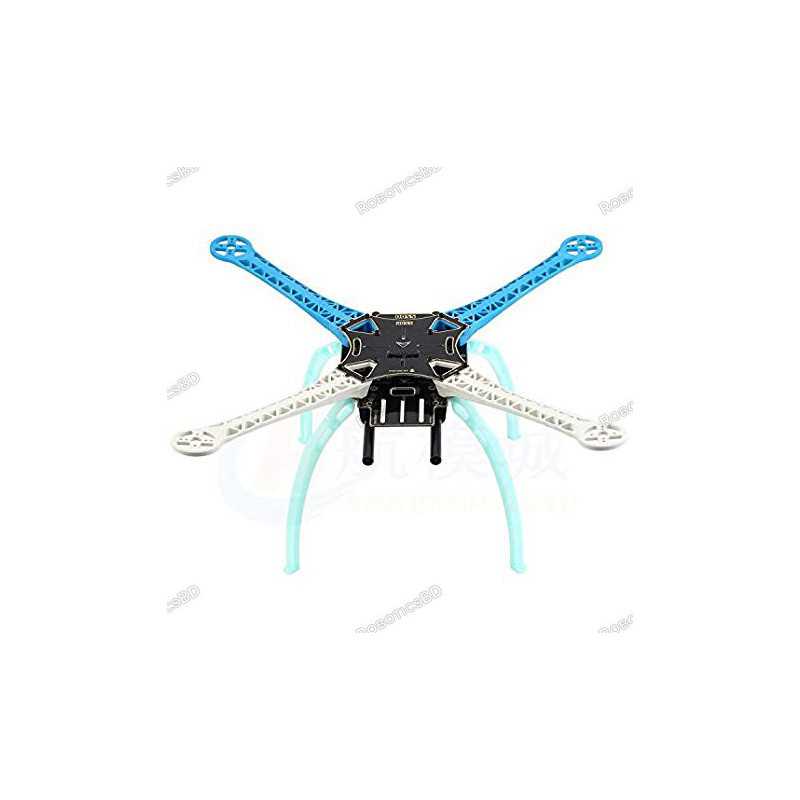

An excellent strong lightweight glass fiber Quadcopter frame with landing gear and a bonus power distribution board (PDB) built-in for neat and easy wiring. This Quad has 480mm motor centers so are ideal for 9 and 10-inch props and it also has an adjustable battery mount to achieve the perfect weight distribution and the bottom frame is ready to take a whole host of camera mounts and gimbals making it perfect for FPV and filming projects. RoboticsBD
The S500 is supplied with 2 x blue and 2 x black arms that are super ridged and have a carbon fiber rod through the center making for the strongest arms we have seen to date in this style of frame. The Blue and black arms make orientation much easier and there is no need for different colored props. The included landing gear has plenty of height making it suitable for GoPro type gimbals or similar. Another feature of the S500 is that when assembled the arms have a slight upsweep, this gives the Quad a dihedral effect which helps make it very stable, especially when descending from altitude. RoboticsBD
Assembly of this frame is super simple with pre-threaded sleeves for all the frame bolts so no lock nuts are required. It utilizes one size bolts for the entire build which means you only want one size hex for the assembly. Another feature is the locating tabs for the arms which enables you to achieve the perfect alignment when building. The motor mounts are ready to take a selection of motors with mounting hole centers of 16, 19 and 25mm once again making this a very universal frame at a very affordable price. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | S500 |
| Drone Type | Quadcopter |
| Material | Glass Fiber + Polyamide Nylon |
| Wheelbase (mm) | 500 |
| Landing Gear Color | Black |
| Shipment Weight | 0.9 kg |
| Shipment Dimensions | 35 × 10 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x S500 Carbon Fiber Quadcopter Drone Frame Kit.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of S500 Glass Fiber Quadcopter Frame 480mm - Integrated PCB Version in Bangladesh is BDT 4,200 You can buy the S500 Glass Fiber Quadcopter Frame 480mm - Integrated PCB Version at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
