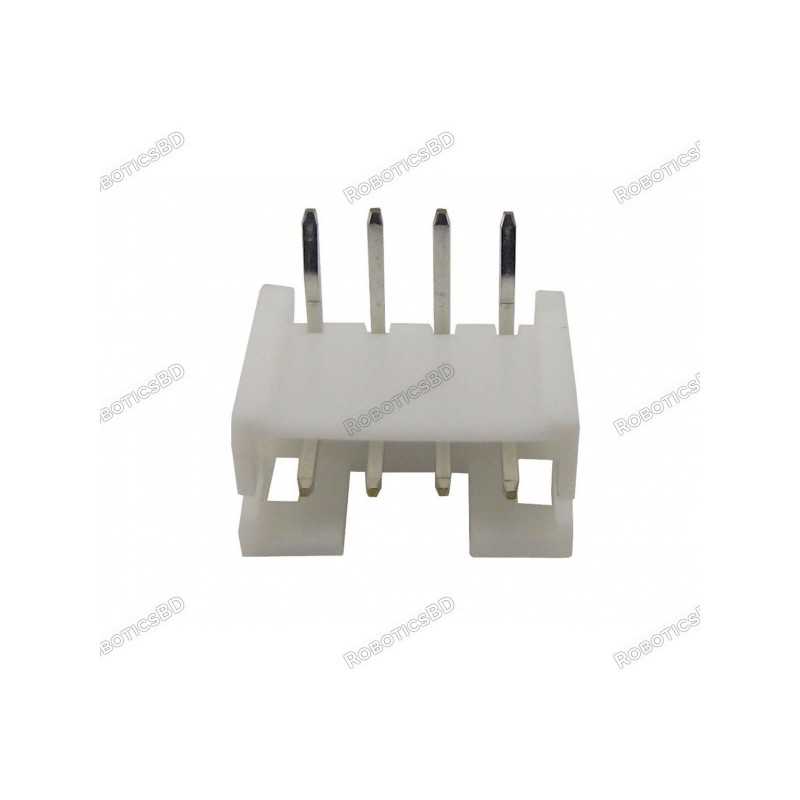

This is a 4 Pin JXT XH Male Right Angle Connector. This is a wire-to-board connector. It is very small with a mounting height of 8 mm. It is a crimp-style connector, and a disconnect able type, and a top entry version. The wires need to be crimped to the terminal, which in turn can be fitted into this female connector, which will be connected to the male connector soldered on any board. It has a good locking mechanism and requires force to remove the female connector from the male connector on board. Thereby removes the problem of unwanted disconnection. Featured by RoboticsBD. The male connector has a spacing of 0.1′(2.54 mm) and can be easily soldered onto a standard prototype board. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Current Rating: | 3A |
| Voltage Rating: | 250V |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Connector Type: | 4 Pin JST-XH Male Right Angle 2.54mm Pitch Connector |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Through Hole |
| Number of Positions: | 4 |
| Number of Rows: | 1 |
| Pitch: | 2.54mm |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 4 Pin JST-XH Male Right Angle Connector 2.54mm Pitch.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 4 Pin JST-XH Male Right Angle Connector 2.54mm Pitch in Bangladesh is BDT 17 You can buy the 4 Pin JST-XH Male Right Angle Connector 2.54mm Pitch at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
