If you want to purchase Blue color 1.3 inch OLED display module click here
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
OLED’s are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED‘s.
The most attractive thing about using the OLED displays is that they do not need a back-light like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy saving displays ever!!! Featured By RoboticsBD.

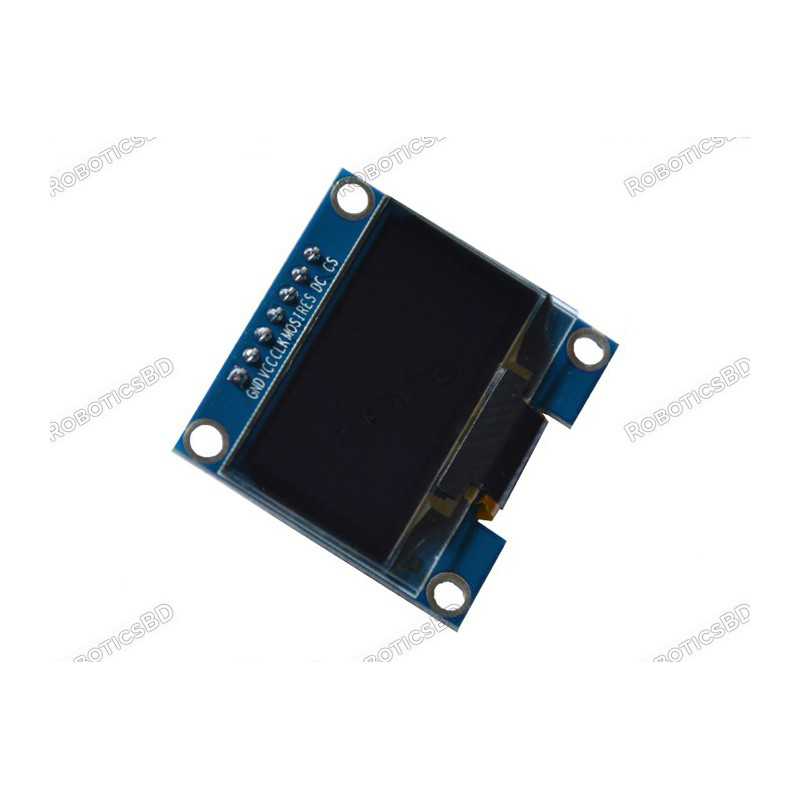

This 1.3 Inch 128×64 OLED Display Screen Module offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.
This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through SPI interface.
The 1.3 Inch 128×64 OLED Display Screen Module produces white text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle of about greater than 160°. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
GND:
VDD: 3.3V (VCC).
MOSI: D11 (don’t change).
SCK: D13 (don’t change).
D/C: D8 (can be any digital pin).
RST: D9 (can be any digital pin).
CS: D10 (can be any digital pin).
| General Specification | |
| Driver IC | SH1106 |
| Pixel Resolution | 128 x 64 |
| Operating Voltage (VDC) | 3.3 |
| Operating Temperature (°C) | -30 to 60 |
| Character Color | White |
| Background Color | Black |
| Weight (gm) | 150 |
| Shipment Weight | 0.2 kg |
| Shipment Dimensions | 8 × 8 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x 1.3 Inch SPI OLED Display Module 7pin White
The latest price of 1.3 Inch SPI OLED Display Module 7pin White in Bangladesh is BDT 590 You can buy the 1.3 Inch SPI OLED Display Module 7pin White at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
