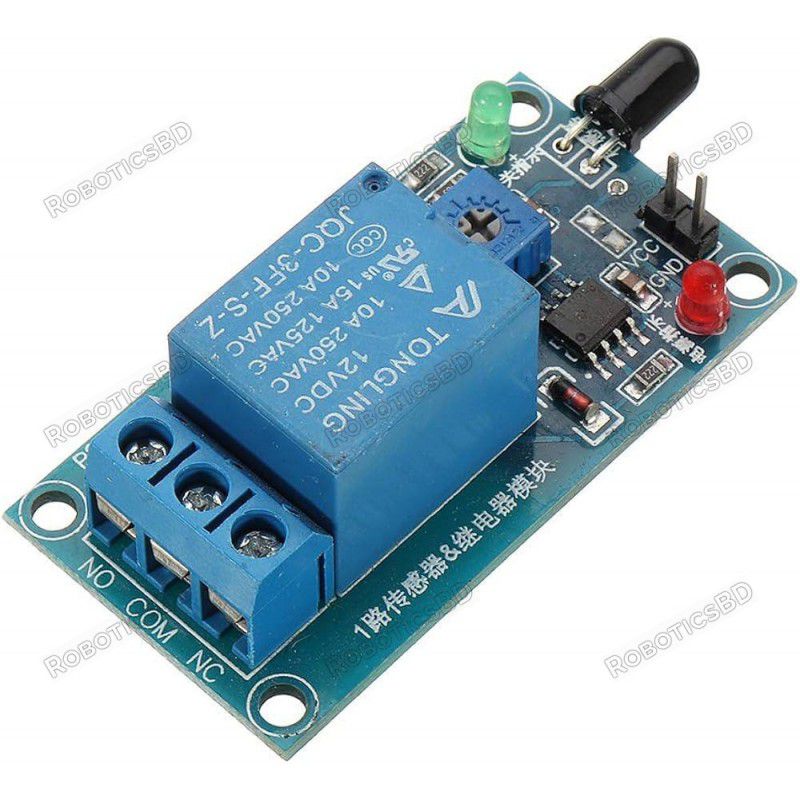

The Flame Sensor Relay Module is a versatile and highly sensitive flame detection system capable of detecting fire or light sources in the 760nm to 1100nm wavelength range. Designed for practical applications, the module features a relay output, enabling it to control high-current electrical equipment directly, such as alarms, fans, or even cutting off 220V AC loads in case of fire detection.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The Flame Sensor Relay Module is a versatile and highly sensitive flame detection system capable of detecting fire or light sources in the 760nm to 1100nm wavelength range. Designed for practical applications, the module features a relay output, enabling it to control high-current electrical equipment directly, such as alarms, fans, or even cutting off 220V AC loads in case of fire detection.
The built-in adjustable sensitivity (via blue potentiometer) and 60-degree detection angle make it particularly responsive to flame sources at distances up to 80cm, depending on flame size. Integrated mounting holes ensure secure and easy installation, making this module ideal for industrial safety systems, fire alarms, home automation projects, and other flame-sensitive control applications.
Flame Detection Range: Detects flames or light sources in the 760nm–1100nm infrared range
Detection Distance: Detect flames up to 80cm (depending on flame size)
Adjustable Sensitivity: Fine-tune the flame detection level using the onboard potentiometer
Relay Output: Directly control high-current devices (up to 10A)
Wide Detection Angle: 60-degree field of view for better coverage
Comparator Circuit: Reliable relay triggering upon flame detection
Compact Design: External dimensions 50x26mm, with 19mm thickness and mounting holes for easy installation
User-Friendly Connection: Bluish terminal block for easy wiring
| Feature | Specification |
|---|---|
| Supply Voltage | 5V DC |
| Operating Current | >150mA |
| Detection Range | Up to 80cm (depending on flame size) |
| Detection Wavelength Range | 760nm to 1100nm |
| Detection Angle | 60 degrees |
| Relay Load Capacity | 250V AC / 10A or 30V DC / 10A |
| Board Dimensions | 50mm x 26mm x 19mm |
| Mounting Holes | Available for secure installation |
Fire detection systems
Industrial safety monitoring
Smart home automation
Fire alarm triggers for residential and commercial use
Automated flame detection for gas stoves, burners, and heating systems
Environmental monitoring and safety control
1 x Flame Sensor Relay Module
Accurate and fast flame detection for enhanced safety
Built-in relay simplifies control of external high-voltage/high-current equipment
Adjustable sensitivity adapts to various installation environments
Compact and durable design ideal for critical safety installations
Upgrade your safety and automation systems with the Flame Sensor Relay Module.
Order now and ensure rapid response to flame or fire conditions for your next project!
The latest price of Flame Sensor Relay Module in Bangladesh is BDT 420 You can buy the Flame Sensor Relay Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
