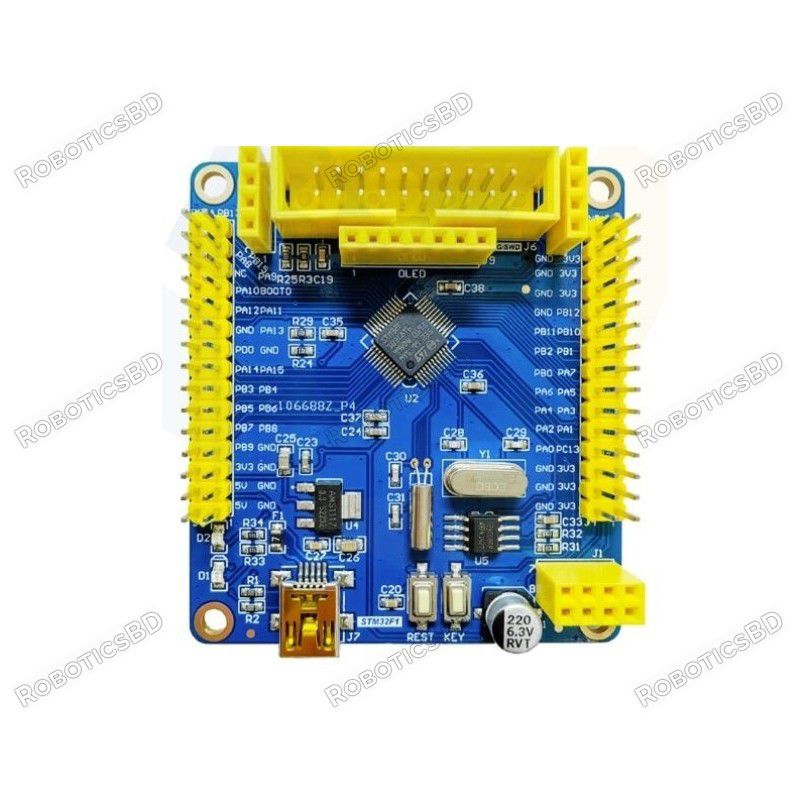

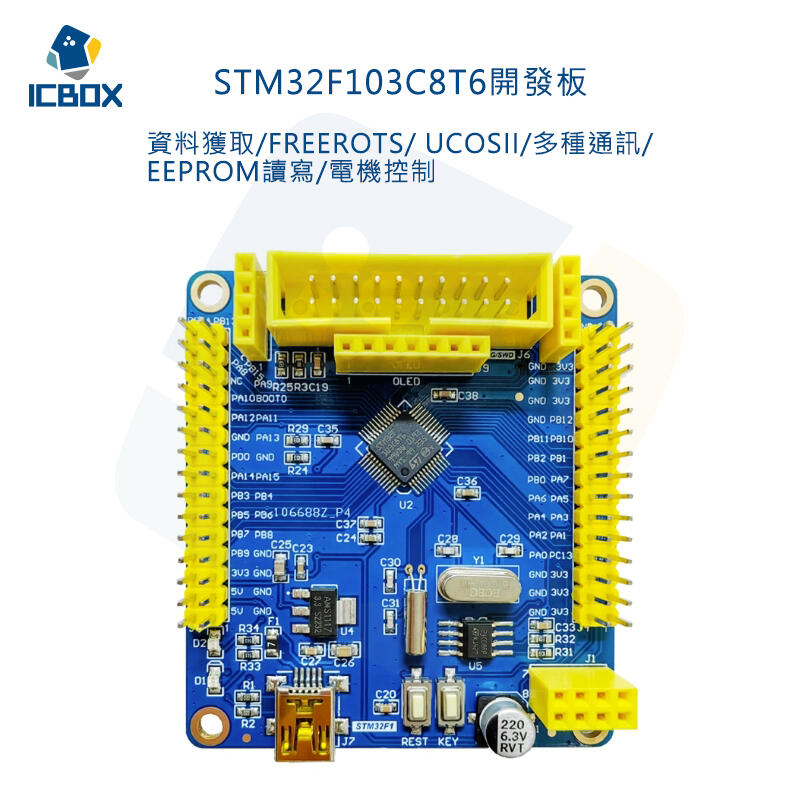

The STM32F103C8T6 Development Board is an ideal learning and development platform for engineers, students, and hobbyists seeking to master ARM Cortex-M3 microcontrollers. Designed around the powerful STM32F103C8T6 chip, this board supports a wide range of peripheral interfaces and module experiments, making it a versatile core for embedded system projects.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The STM32F103C8T6 Development Board is an ideal learning and development platform for engineers, students, and hobbyists seeking to master ARM Cortex-M3 microcontrollers. Designed around the powerful STM32F103C8T6 chip, this board supports a wide range of peripheral interfaces and module experiments, making it a versatile core for embedded system projects.
Offering extensive documentation, schematic diagrams, routine experiment codes, and tutorial videos, the development board enables easy learning and rapid prototyping. It supports various popular downloaders and debuggers such as ST-LINK V2, JLINK V9, DAPLINK, and ULINK2, providing flexibility for different development environments.
With support for multiple sensor modules and communication protocols, including 485 communication, CAN communication, ESP8266 WiFi experiments, and motor control, the STM32F103C8T6 Development Board is a must-have tool for mastering STM32 development.
Comprehensive Learning Resources: Includes chip manuals, user manual files, schematic diagrams, experiment routines, codes, and video tutorials

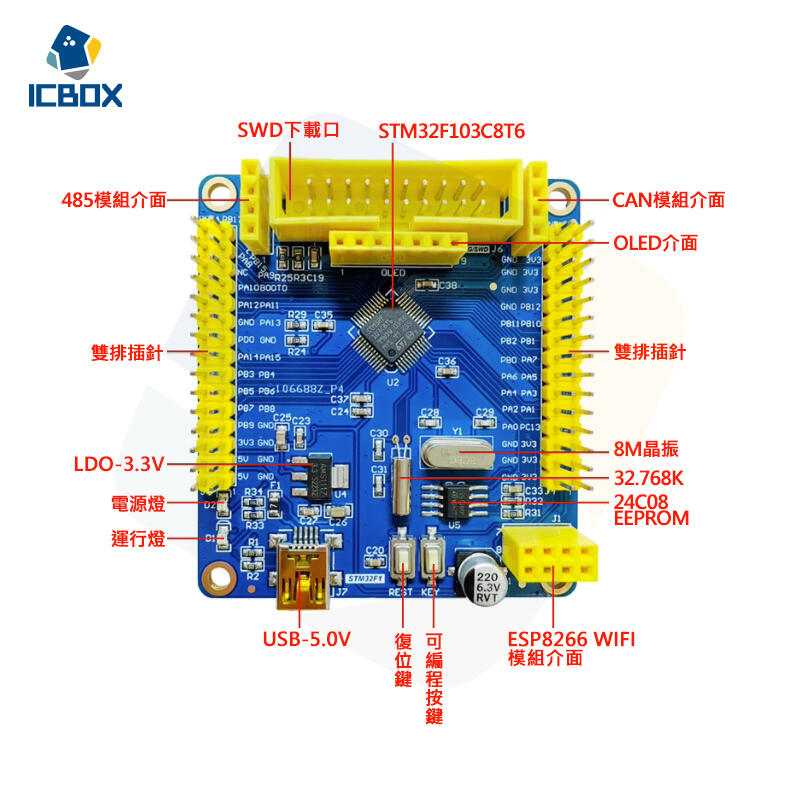

Wide Peripheral Support: Connects easily with sensor modules for experiments like:
485 communication
5V stepper motor control
DS18B20 temperature sensing
W25Q32 FLASH read/write
Ultrasonic distance measurement
Infrared obstacle avoidance
Laser ranging
ESP8266 WiFi communication
CAN bus communication
Dual DC brushed motor control

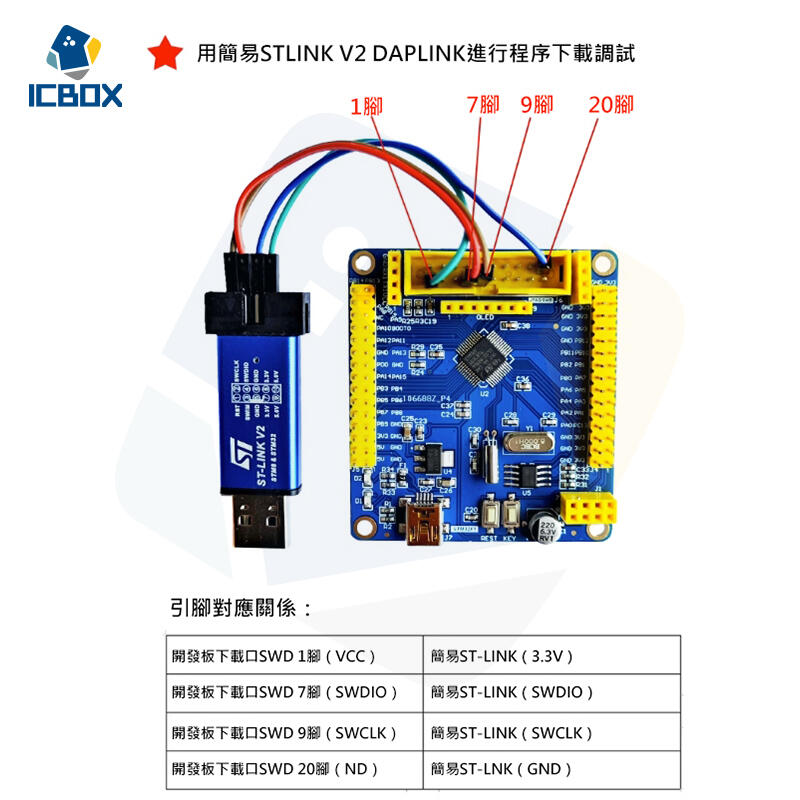

Flexible Programming and Debugging:
Supports ST-LINK V2, Simple ST-LINK V2, JLINK V9, DAPLINK, ULINK2
Easy Debugging Steps:
Connect the downloader to the development board using the gray cable.
Compile the program in Keil5 environment and click LOAD to download.
Click Start Debug to begin program debugging.

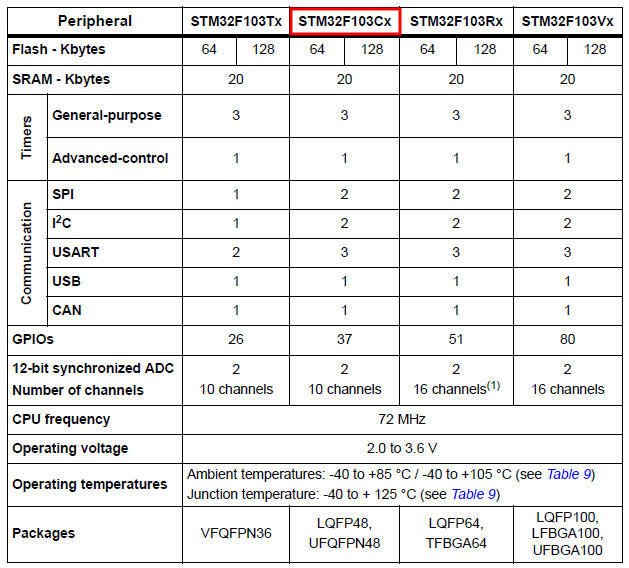

| Feature | Specification |
|---|---|
| MCU | STM32F103C8T6 (ARM Cortex-M3 core) |
| Flash Memory | 64KB |
| SRAM | 20KB |
| Operating Voltage | 3.3V (logic level) |
| Communication Interfaces | UART, SPI, I2C, CAN, USB |
| GPIO Availability | Full access to general-purpose IO |
| Debugging/Programming Interface | SWD, ST-LINK, J-LINK support |
1 x STM32F103C8T6 Development Board Core Board
Embedded systems development and testing
Sensor data acquisition and control systems
IoT project prototyping
Robotics and automation projects
Educational and laboratory use
Communication protocol experimentation
Rich experimental support covering a wide range of modules and communication interfaces
Flexible programming and debugging options compatible with popular emulators
Comprehensive documentation and tutorials make learning smooth and fast
Compact and versatile design suited for beginners and professionals alike
Start mastering ARM Cortex-M3 programming and embedded systems design with the STM32F103C8T6 Development Board.
Order now and unlock the full potential of STM32 development!
![[ICBOX] STM32F103C8T6 development board learning board core board experimental board can be used with simulation downloader ST-LINK /A573](https://gcs.rimg.com.tw/g2/9/81/48/22325002330440_299.jpg)
![[ICBOX] STM32F103C8T6 development board learning board core board experimental board can be used with simulation downloader ST-LINK /A573](https://gcs.rimg.com.tw/g2/9/81/48/22325002330440_976.jpg)
![[ICBOX] STM32F103C8T6 development board learning board core board experimental board can be used with simulation downloader ST-LINK /A573](https://gcs.rimg.com.tw/g2/9/81/48/22325002330440_987.jpg)
![[ICBOX] STM32F103C8T6 development board learning board core board experimental board can be used with simulation downloader ST-LINK /A573](https://gcs.rimg.com.tw/g2/9/81/48/22325002330440_257.jpg)
![[ICBOX] STM32F103C8T6 development board learning board core board experimental board can be used with simulation downloader ST-LINK /A573](https://gcs.rimg.com.tw/g2/9/81/48/22325002330440_602.jpg)
![[ICBOX] STM32F103C8T6 development board learning board core board experimental board can be used with simulation downloader ST-LINK /A573](https://gcs.rimg.com.tw/g2/9/81/48/22325002330440_721.jpg)
The latest price of STM32F103C8T6 Development Board Learning Board Core Board in Bangladesh is BDT 1,750 You can buy the STM32F103C8T6 Development Board Learning Board Core Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
