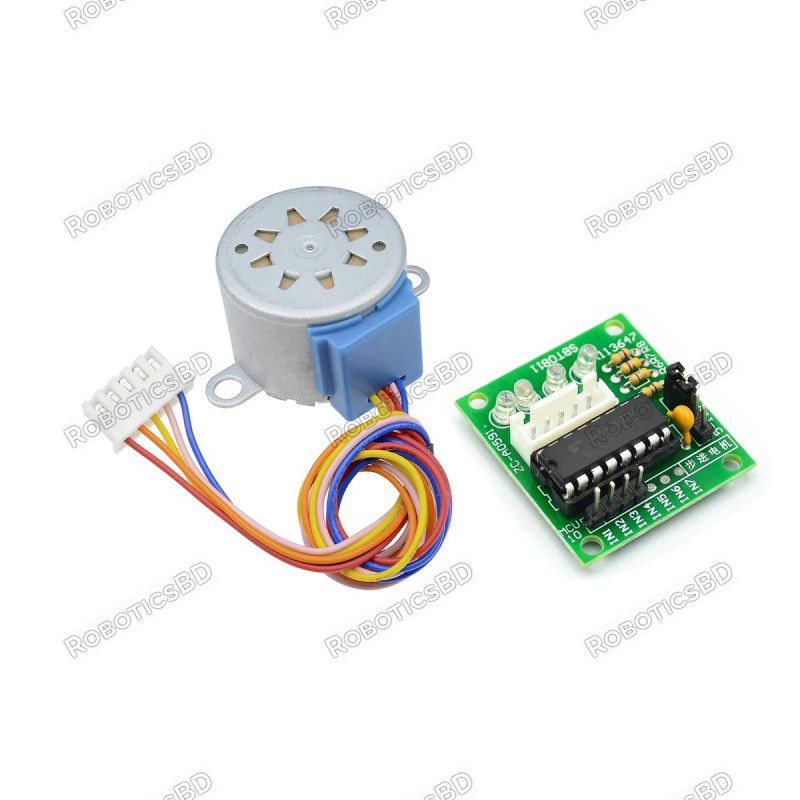

This 12V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. RoboticsBD
Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed for the quality of these compact stepper motors.
The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor which has 5-wires. RoboticsBD
As stated before the pack contains ULN2003 Driver Board which is a Mini Stepper Motor Driver. The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor. RoboticsBD
If you will give the ULN2003 Driver Board a certain pulse signal, it will drive step motor to a certain angle. The control of Stepper motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: The system is recommended to run on Half-step mode(8 step control signal sequence) for excellent performance experience.
A (Blue), B (Pink), C (Yellow), D (Orange), E (Red, Mid-Point)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | 28BYJ-48 |
| Rated Voltage(V) | 12 |
| Rated Current (mA) | 500 mA |
| Step Angle | 5.625°/64 |
| Reduction ratio | 64:1 |
| Resistance (Ω) | 50 |
| In-Traction Frequency(Hz) | >600 Hz |
| Out-Traction Frequency(Hz) | >1000 Hz |
| In-traction Torque(mN-m) | 34.3 |
| Self-positioning Torque(mN-m) | 34.3 |
| Friction Torque(gf-cm) | 600-1200 |
| Pull in Torque(gf-cm) | 300 |
| Insulation Grade | A |
| Shaft Type | Double D-Type |
| Motor Weight(gm) | 34 |
| Length (mm) | 34 |
| Width (mm) | 18 |
| Height (mm) | 10 |
| Weight (gm) | 34 |
| Shipment Weight | 0.037 kg |
| Shipment Dimensions | 14 × 8 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 28BYJ-48 Stepper Motor
1 x ULN2003 Stepper Motor Driver.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of DC 12V Stepper Motor with ULN2003 Driver Board 28BYJ-48 in Bangladesh is BDT 280 You can buy the DC 12V Stepper Motor with ULN2003 Driver Board 28BYJ-48 at best price from our RoboticsBD or visit RoboticsBD Office.
|
