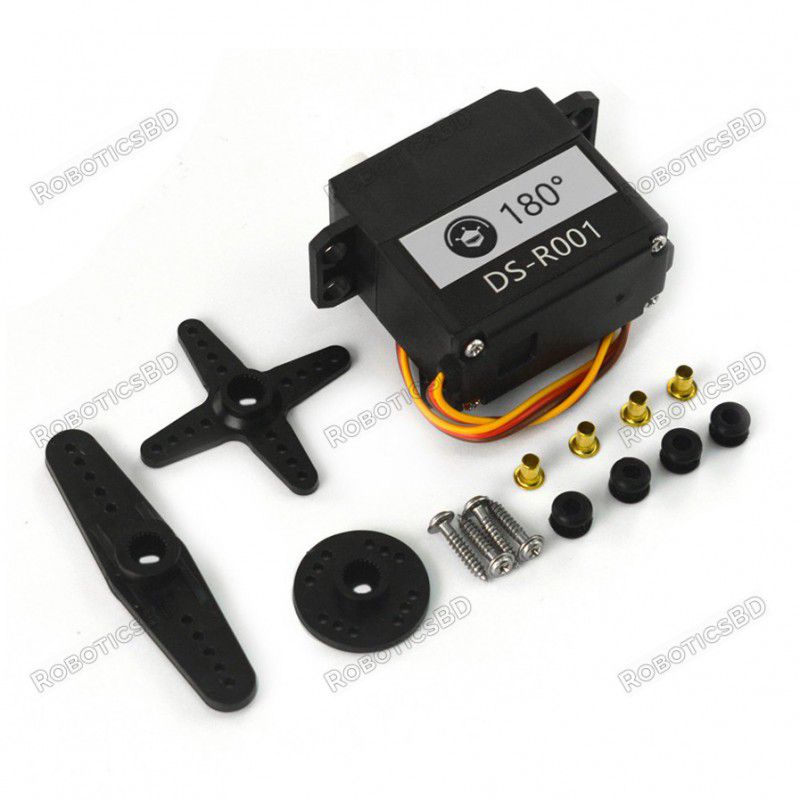

The servo features clutch function and electronic protection to prevent damage, with 180° rotation, high torque, and compatibility with Arduino IDE.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
When a servo is operated under complex circumstances such as robot and model, it may get stuck, be burned or damaged due to external forces, which could bother you a lot...
Now DFRobot is launching a series of servos with clutch function and electronic protection that can solve your problems perfectly.
Clutch function
When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through clutch function, which prevents it from being damaged.
Electronic protection
After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned.
Servo Internal structure
This servo features large torque, stable performance, accurate running angle and easy to install. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 6kg.cm. Since there is no limit switch inside the servo, users can make the servo rotate smoothly in 360 degrees (manually only). Besides, the servo could operate fluently with minimal power, and you can just supply power to it by normal battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum 180 degrees rotation angle within the pulse range of 500-2500μsec.
Mechanical Dimensions
The latest price of DFRobot 6Kg 180° Clutch Servo in Bangladesh is BDT 1,645 You can buy the DFRobot 6Kg 180° Clutch Servo at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
