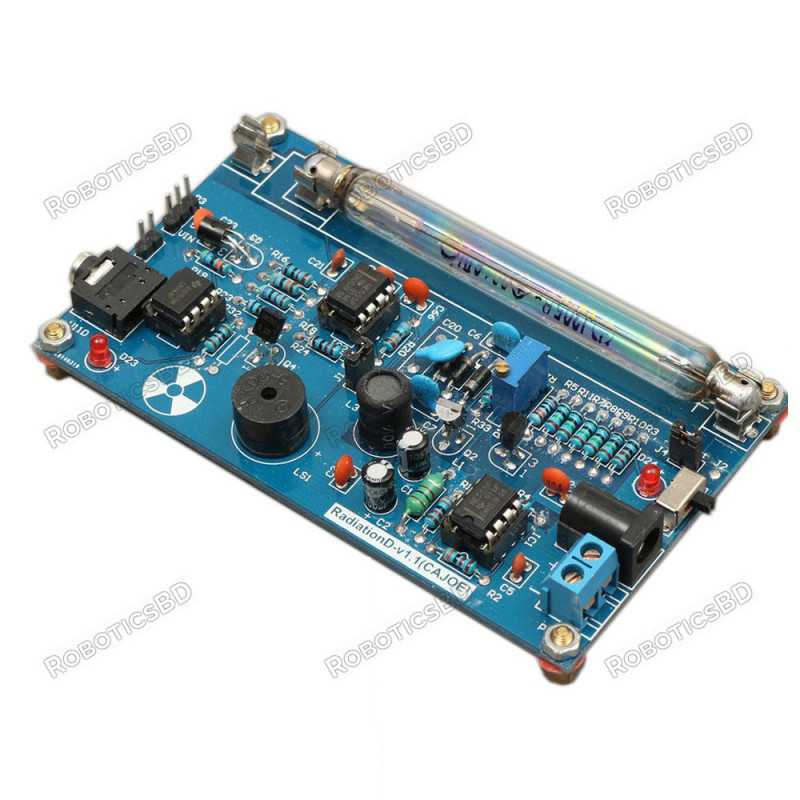

DIY Geiger Counter Kit Nuclear Radiation Detector Gamma Ray Build Radiation Monitoring Station. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: The kit comes as dissembled or assemble as our stock rotates
Details: https://github.com/2969773606/GeigerCounter-V1.1
Features:
- 5V power supply, or 1.5V 3x battery; 1.2V 4x battery, current: 30mA - 12mA for the detection of 20mR/h ~ 120mR/h of gamma rays and 100 ~ 1800 off variables / points / cm 2 of the soft beta ray. RoboticsBD
- Sound and Light alarm
- Interrupt the output interface, through this interface can be connected to the microcontroller and then displayed on the LCD.
- Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330~600V operating voltage of the Geiger tube can be supported).
- Support the computer (PC) data acquisition, MATLAB analysis and processing.
- Compatible with Arduino: (recommended UNO R3 Arduino, or any other arbitrary with 5V and external interrupt INT)
Specification:
- Name: Radiation Detector system
- Model:508295
- Accuracy ±2ppm from 0°C to +40°C
- Interface I2C
- I2C Address 0x64
- Geiger tube parameters:
- Technical parameters diameter:Φ10±0.5mm
- Total length: 90±2mm
- Starting voltage: < 350V
- Recommended operating voltage: 380V
- Minimum plateau length: 80V
- Maximum plateau slope: 10%/80V
- Extreme operating voltage: 550V
- The maximum count rate: 25 times / min
- Life: > 1 x 10^9 pulse
- Medium temperature: -40 ~ 55 ℃
- Size:108x63x20mm
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Geiger tube Size |
108x63x20mm |
| Shipment Weight |
0.05 kg |
| Shipment Dimensions |
18 × 18 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Geiger-Counter-RadiationD-v1.1-CAJOE-
- Sch__Geiger Counter Kit-v1.1.pdf
- Build your own 50$ connected Geiger Counter (ESP32)
- Study of a Portable Experimental Set for the Monitoring of Ionizing Radiation in the Tropical Region of Brazil
- Backup Link for Github files
Package Includes :
1x Assembled Radiation Detector system
1x G M Tube
1x Power supply cable
1x Battery Holder (without batteries)
3x Jumper Wires
4x Nuts
1x Acrylic cover.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
What is the price of Geiger Counter Kit Nuclear Radiation Detector Gamma Ray Build Radiation Monitoring Station in Bangladesh?
The latest price of Geiger Counter Kit Nuclear Radiation Detector Gamma Ray Build Radiation Monitoring Station in Bangladesh is BDT 5,890 You can buy the Geiger Counter Kit Nuclear Radiation Detector Gamma Ray Build Radiation Monitoring Station at best price from our RoboticsBD or visit RoboticsBD Office.
|
