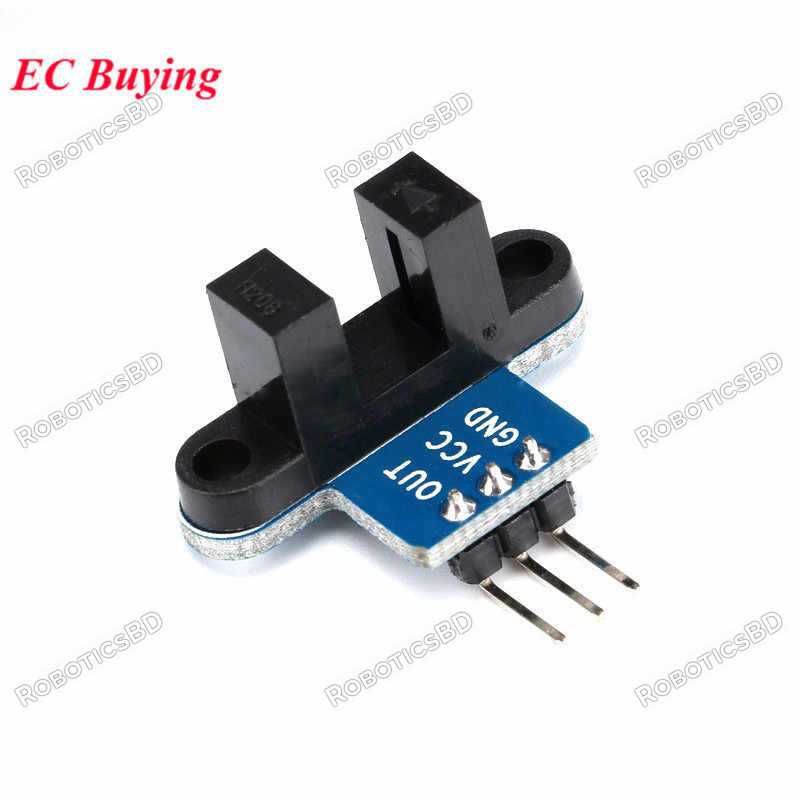

The slot type photoelectric sensor is composed of an infrared light emitting diode and an NPN phototransistor with a groove width of 5.9 mm. As long as the non-transparent object passes through the slot type, it can be triggered (used with our car code wheel) to output TTL low level. The Schmitt trigger is used to shake the pulse, which is very stable and can be used for measuring the speed of the car, measuring the distance and the like! M3 screw mounting holes at both ends.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
#include <TimerOne.h>
unsigned int counter=0;
void blink()
{
counter++;
}
void timerIsr()
{
Timer1.detachInterrupt(); //disable the timer1
Serial.print("The speed of the motor: ");
Serial.print(counter,DEC);
Serial.println("round/s");
counter=0;
Timer1.attachInterrupt( timerIsr ); //enable the timer1
}
void setup()
{
Serial.begin(9600);
Timer1.initialize(1000000); // set a timer of length 1sec
attachInterrupt(0, blink, RISING); //INT0
Timer1.attachInterrupt( timerIsr ); // attach the service routine here
}
void loop()
{
; //do nothing
}
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Shipment Weight | 0.007 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Speed Measuring Sensor Groove Coupler Module For Arduino.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Digital Tachometer Speed Module Sensor for Arduino UNO in Bangladesh is BDT 90 You can buy the Digital Tachometer Speed Module Sensor for Arduino UNO at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
