TIP122 Robotics Bangladesh
  • TIP122 Robotics Bangladesh

TIP122

RBD-1445
  • IC Name: TIP122
  • Package/Case: DIP-3
BDT 20
rating Read the 8 reviews
Average rating: 5/5 Number of reviews: 8
Quantity
In-Stock

359 people have purchased this item recently
115 people added this item to the cart in last 10 days
85 items in stock in Uttara, Dhaka
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

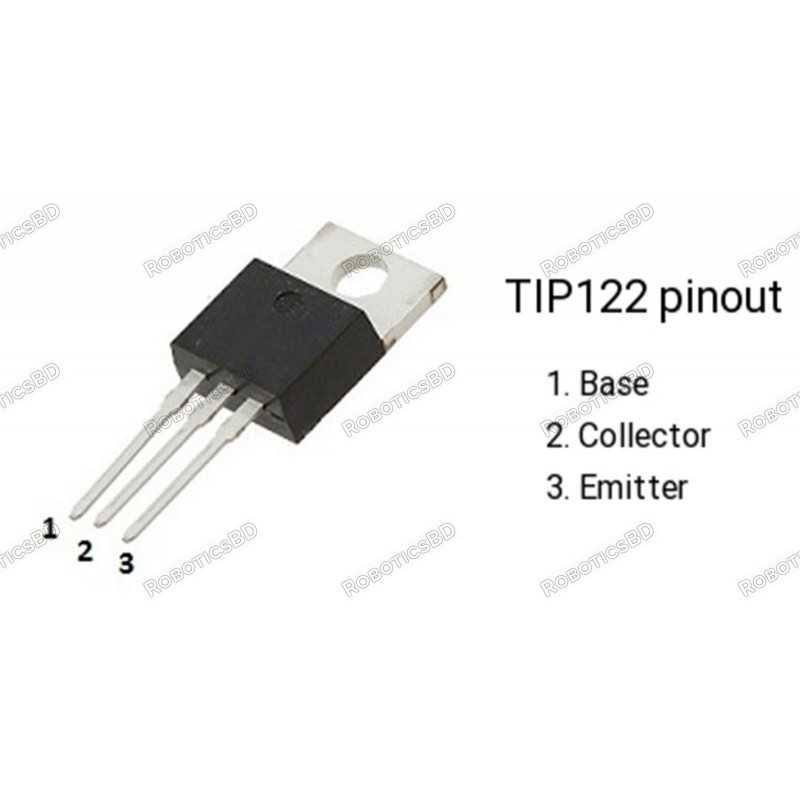

Designed for general−purpose amplifier and low−speed switching applications. This is a TIP122 Power NPN Darlington Transistor which is designed for general purpose amplifier and low speed switching applications. It can generally drive high voltage DC Loads. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. High DC Current Gain −
  2. hFE = 2500 (Typ) @ IC = 4.0 Adc •
  3. Collector−Emitter Sustaining Voltage − @ 100 mAdc
  4. VCEO(sus) = 60 Vdc (Min) − TIP120, TIP125 = 80 Vdc (Min) − TIP121, TIP126 = 100 Vdc (Min) − TIP122, TIP127 •
  5. Low Collector−Emitter Saturation Voltage −
  6. VCE(sat) = 2.0 Vdc (Max) @ IC = 3.0 Adc = 4.0 Vdc (Max) @ IC = 5.0 Adc •
  7. Monolithic Construction with Built−In Base−Emitter Shunt Resistors

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Collector−Emitter Voltage 100
Collector−Base Voltage 100
Emitter−Base Voltage 5
Product Type TIP122 Power NPN Darlington Transistor
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x TIP122

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
