Through the transmitter, resistance signal of the thermal resistance can be converted into 4-20mA current signal through the transmitter. Perfect for two wire solution using a standard RTD sensor package. Easy to use with Controller and PLC. RoboticsBD
The famously known “hockey puck transmitter” got its name from its form factor. These are used for basic applications and are the most common transmitter. They are also well suited for OEM applications and are low cost. These transmitters are suitable to be put inside the heads of temperature probes. They have two mounting holes on each side of the device. They are designed to be small and to limit the amount of installation hardware. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Sensor | PT100 |
| Power Supply | 24V DC |
| Output Current | 4-20mA |
| Temperature Range | -50℃ to 200℃ |
| Measurement Precision | ±0.2%F.S |
| Total Size | 45 x 20mm / 1." x 0.9"(D*T) |
| Material | Plastic, Metal; Color Blue |
| Shipment Weight | 0.025 kg |
| Shipment Dimensions | 4.5 × 4.5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

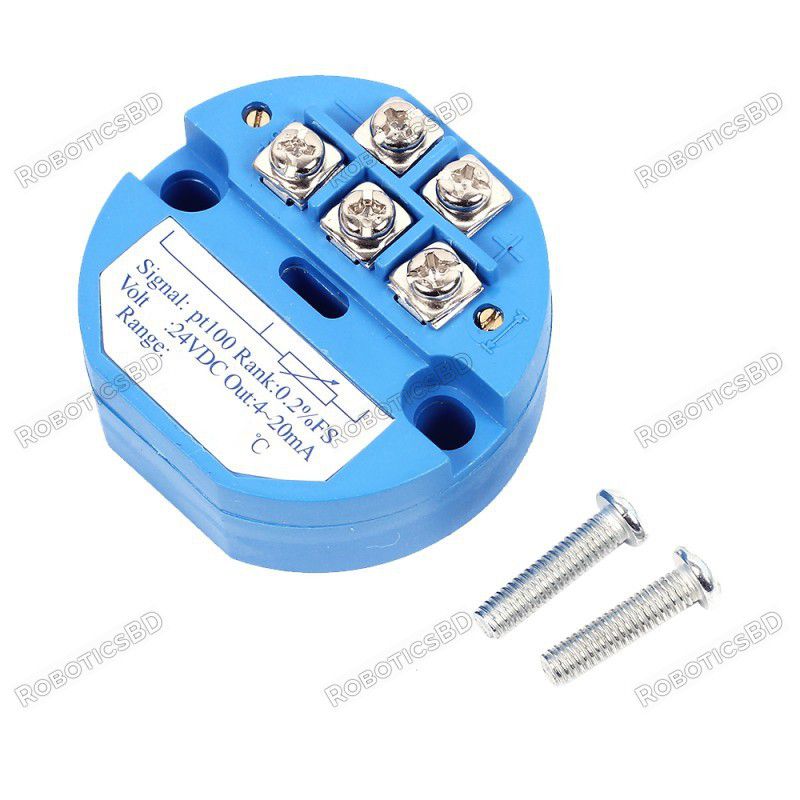

1 x PT100 Temperature Transmitter -50~200 Celsius Range 4-20MA DC 24V
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of PT100 Temperature Transmitter -50~200 Celsius Range 4-20MA DC 24V in Bangladesh is BDT 990 You can buy the PT100 Temperature Transmitter -50~200 Celsius Range 4-20MA DC 24V at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
