3650 Brushless Motor 3930KV + 60A Waterproof BEAST Series ESC Robotics Bangladesh

Product Images are shown for illustrative purposes only and may differ from the actual product.

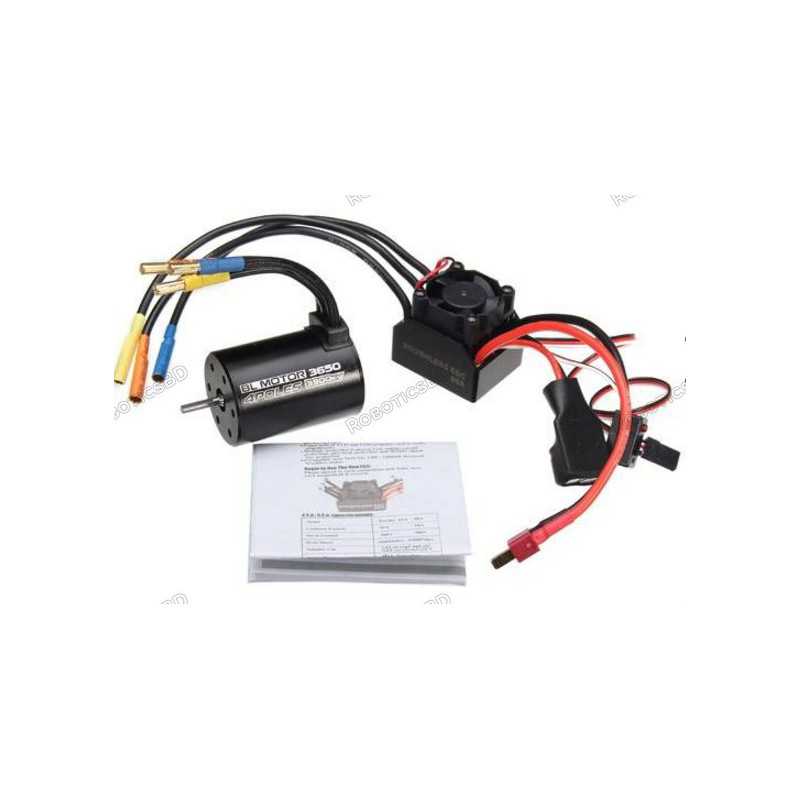

3650 Brushless Motor 3930KV + 60A Waterproof BEAST Series ESC

Reference RBD-0309

4 poles 12 slot Hi-torque motor design
CNC machined 6061 T6 windings maximizes efficiency
High RPM ABEC5 oversize bearings
Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor, smoothness for best reliability and maximum RPM

BDT 8,000

Read the review

Average rating: 5/5 - Number of reviews: 1

Quantity

Out of Stock

55 people recently added this item to the cart

There are not enough products in stock

Notify Me

Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Motor Features :

4 poles 12 slot Hi-torque motor design
CNC machined 6061 T6 windings maximizes efficiency
High RPM ABEC5 oversize bearings
Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator- Super Thin(0.35mm) Laminations
Removable/Replaceable rotor
Precision engineered for Maximum energy conversion

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Motor specification :

KV: 3930KV
Max RPM: 50000
length: 50mm
Diameters: 36mm with fins

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

ESC Features :

Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
Using LED program card to make adjustments.
Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection
Compatible with most of brushless motor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

ESC Specifications:

Current: 60A
Burst Current: 380A
Resistance: 0.0007ohm
Suitable Car: 1:10 on-road and off-road cars/trucks,SCT
Motor Type: 4 Pole Sensorless brushless motor
Suitable Brushless Motor: 4P SL 3650B 2Y 4350KV
Battery cell:2-3S Lipo/5-12S Cell Nixx( NiMH/NiCd)
BEC Output:6V/3A
Dimension(without fan): 52*38*36mm
Weight(g): 107g

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Motor KV:	3930KV
Motor Max RPM:	50000
Motor length:	50mm
Motor Diameters:	36mm with fins
ESC Current:	60A
ESC Burst Current:	380A
ESC Resistance:	0.0007ohm
ESC Motor Type:	4 Pole Sensorless brushless motor
ESC Battery cell:	2-3S Lipo/5-12S Cell Nixx( NiMH/NiCd)
ESC BEC Output:	6V/3A
ESC Dimension(without fan):	523836mm
ESC Weight(g):	107g
Shipment Weight	0.18 kg
Shipment Dimensions	10.3x10.5x6.5

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 3650 Brushless Motor 3930KV
1 x 60A Waterproof BEAST Series ESC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of 3650 Brushless Motor 3930KV + 60A Waterproof BEAST Series ESC in Bangladesh?

The latest price of 3650 Brushless Motor 3930KV + 60A Waterproof BEAST Series ESC in Bangladesh is BDT 8,000 You can buy the 3650 Brushless Motor 3930KV + 60A Waterproof BEAST Series ESC at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Product Details

Reference RBD-0309

Attachments

Download

60A Waterproof BEAST Series ESC

60A Waterproof BEAST Series ESC

Download (4.57M)
