Descriptions:

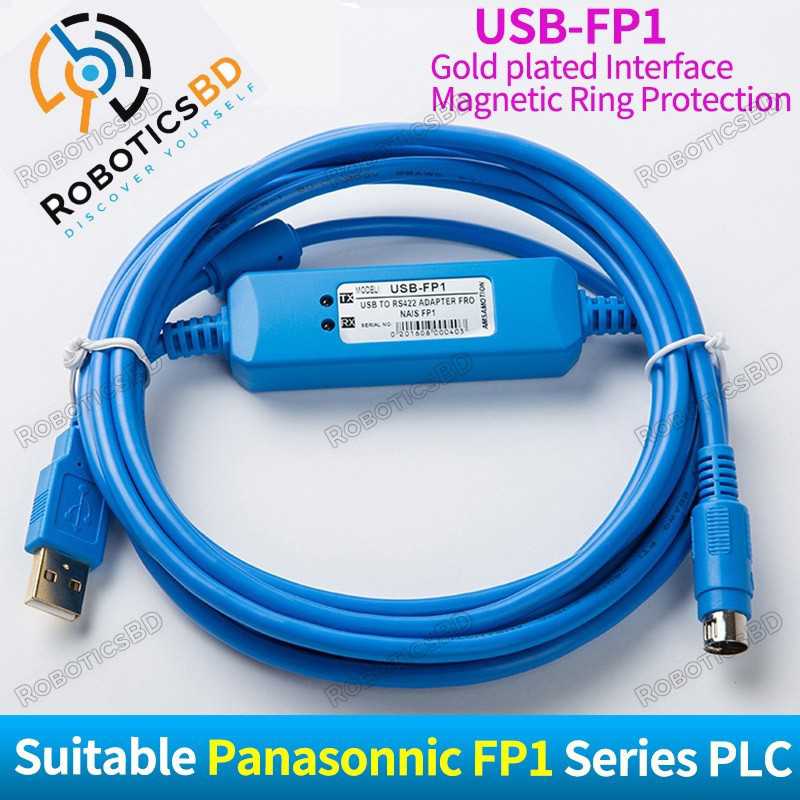

This USB-FP1 cable is a suitable replacement of USB programming cable for Panasonic FP1 series PLC.
This cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software to communicate through simulated traditional port and PLC devices. Embedded with this cable is the necessary data conversion equipments to communicate between PLC end to and PC USB end.
Features
- Support FPSOFT V1.1 and above.
- Support Windows 7/2000/Windows XP (WinNT4/95/98/Me/DOS NOT SUPPORTED).
- baud rate: 300 bps ~ 1Mbps automatically adaptive.
- USB bus-powered, with current consumption of 50 mA
- Support UART data format: Data bit: 8, stop bit: 1, 2, Parity: odd / even / no parity
- Compatible with USB V1.1 and V2.0
- Reliable performance & reasonable price
Usage:
USB device drivers should be installed before using programming cable, which are available on the CD-ROM sold together with the cable. And for the specific installation steps, please refer to the instruction files on the CD-ROM drivers, and details are not necessarily listed here.
After completing Driver installation, the corresponding COM port for the programming cable will be displayed in the Device Manager of Window. The step next is just to choose this COM port in the programming software and other application software and keep other communication parameters as in the Default settings. And the following steps are exactly the same as in the traditional programming cables with RS232 interfaces.
Package info
1 x USB-FP1 PLC Programming Cable
