Description:

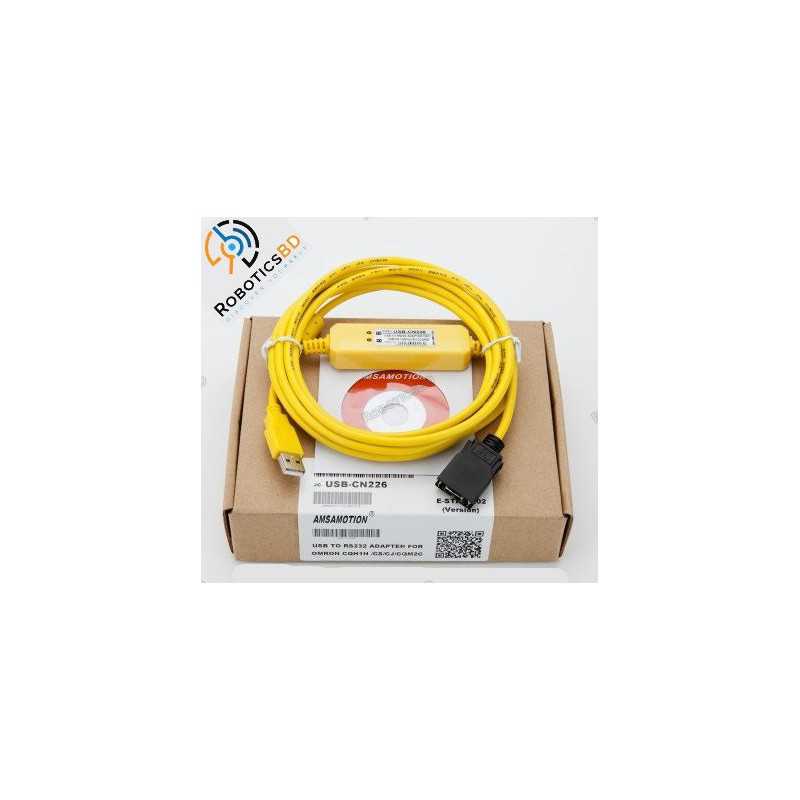

USB-CN226:USB interface,cable directly for CS/CJ,CQM1H,CPM2C series PLC, 3 Meters. No need to be switched over by CS1W-CN114,with communication indicator.
Summary:
USB-CN226 is the programming cable in which USB interface provided both the serial connection and RS232 signal conversion. Under the control of computer-driven driver, the programming cable makes it possible for the computer's USB interface to simulate the traditional serial (known as COM interface), thus various existing programming software such as communications software, monitoring software and other applications can be normally used. The working power supply of this cable is directly from the USB port, but not the PLC programming interface. The two-color LED on the converter box indicates data's transceiving status.
USB-CN226 is applicable to Omron PLC, with a direct connection to the interface of the CS / CJ, CQM1H and the CPM2C series PLC.
- Features and technological index:
- Support USB-CN226 programming software version: CX-Programmer V1.0 and above
- Fully compatible with USB2.0 norms
- USB-bus powered, with current consumption of 50 mA
- Baud rate: 300 bps ~ 1Mbps automatically adapt to the standard baud rate
- Support UART data format: data bits: 7-8; stop bit: 1, 2; check-bit: odd / even / no parity
- Each PC only supports one USB cable programming
- Working temperature: -20 ~ +75 C
- Cable length: 3 m, Color: Yellow
