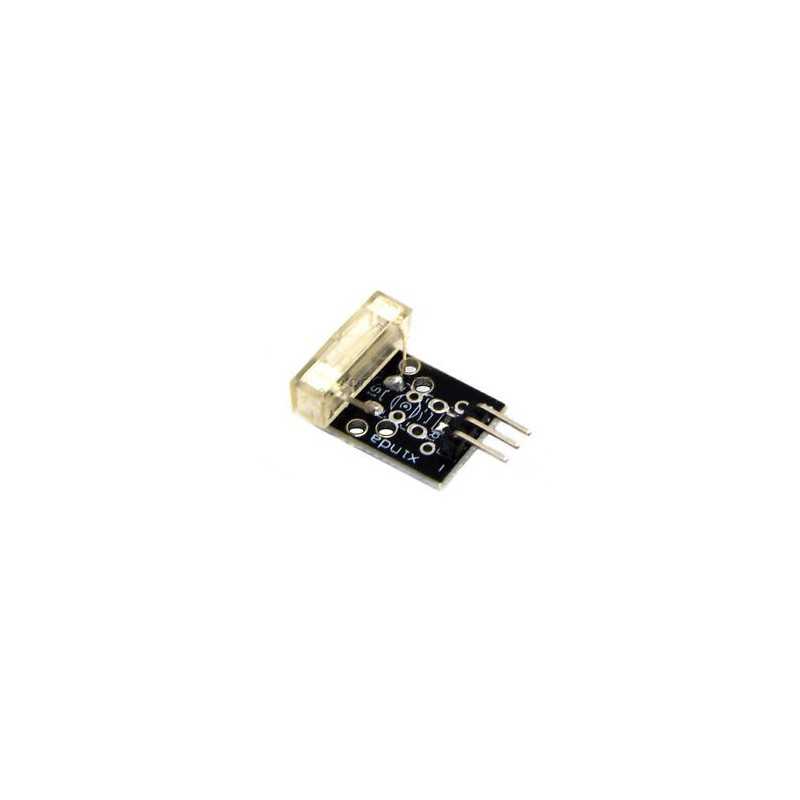

As the name suggests the Knock Sensor Module produces the Digital output on the detection of Knock i.e. vibration stroke. Further, the change in voltage level can be manipulated to produce the desired output and can be used in a variety of applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Code Example for Arduino Board:

int Led = 13 ;// Declaration of the LED output pin
int Sensor = 10; // Declaration of the sensor input pin
int val; // Temporary variable

void setup ()
{
  pinMode (Led, OUTPUT) ; // Initialization output pin
  pinMode (Sensor, INPUT) ; // Initialization sensor pin
}

void loop ()
{
  val = digitalRead (Sensor) ; // The current signal at the sensor will be read

  if (val == HIGH) // If a signal was detected , the LED will light up
  {
    digitalWrite (Led, LOW);
  }
  else
  {
    digitalWrite (Led, HIGH);
  }
}

Connections with Arduino:

1. LED +: [Pin 13]
2. LED -: [Pin GND]
3. Sensor signal: [Pin 10]
4. Sensor +V: [Pin 5V]
5. Sensor -: [Pin GND] RoboticsBD

Code Example for Raspberry Pi:

# Needed modules will be imported and configured
import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)

# The input pin of the sensor will be declared. Additional to that the pull up resistor will be activated
GPIO_PIN = 24
GPIO.setup(GPIO_PIN, GPIO.IN)

print "Sensor-Test [press ctrl+c to end]"

# This output function will be started at signal detection
def outFunction(null):
        print("Signal detected")

# At the moment of detection a signal (falling signal edge) the output function will be activated.
GPIO.add_event_detect(GPIO_PIN, GPIO.FALLING, callback=outFunction, bouncetime=100)

# main program loop
try:
        while True:
                time.sleep(1)

# Scavenging work after the end of the program
except KeyboardInterrupt:
        GPIO.cleanup()

Connections with Raspberry Pi:

1. Signal: GPIO24[Pin 18]
2. +V: 3,3V[Pin 1]
3. GND: GND[Pin 6]

Specifications and Features:

1. Detect shocks with the spring and send a signal to Controller Board
2. Operating voltage: 3.3V-5V
3. Digital output
4. Bolt holes for easy installation. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x The Knock Sensor Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of Knock Sensor Module KY-031 in Bangladesh?

The latest price of Knock Sensor Module KY-031 in Bangladesh is BDT 99 You can buy the Knock Sensor Module KY-031 at best price from our RoboticsBD or visit RoboticsBD Office.
