SparkFun 9 Degrees of Freedom IMU Breakout - LSM9DS0

RBD-0233

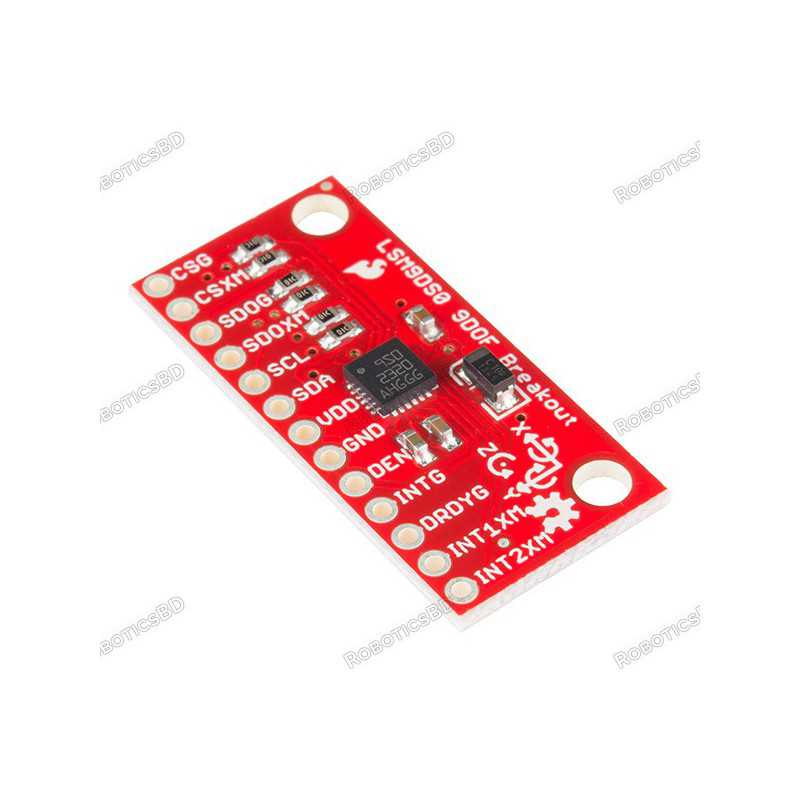

Description: This is the LSM9DS0, a versatile motion-sensing
system-in-a-chip that houses a 3-axis accelerometer, 3-axis
gyroscope, and 3-axis magnetometer. That’s right, 9 degrees
of freedom (9dof) from a single IC!
BDT 2,700
Quantity
There are not enough products in stock

6 people have purchased this item in last 12 months
6 people recently added this item to the cart
There are not enough products in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement
Description: This is the LSM9DS0, a versatile motion-sensing system-in-a-chip that
houses a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. That’s right,
9 degrees of freedom (9dof) from a single IC!

Each sensor in the LSM9DS0 supports a wide range of, well, ranges: the accelerometer’s
scale can be set to ± 2, 4, 6, 8, or 16 g, the gyroscope supports ± 245, 500, and 2000 °/s, and
the magnetometer has full-scale ranges of ± 2, 4, 8, or 12 gauss. Additionally, the LSM9DS0
includes an I2C serial bus interface supporting standard and fast mode (100 kHz and 400 kHz)
and an SPI serial standard interface.

Features:
  • 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels
  • ±2/±4/±6/±8/±16 g linear acceleration full scale
  • ±2/±4/±8/±12 gauss magnetic full scale
  • ±245/±500/±2000 dps angular rate full scale
  • 16-bit data output
  • SPI / I2C serial interfaces
  • Analog supply voltage 2.4 V to 3.6 V
  • Programmable interrupt generators
  • Embedded self-test
  • Embedded temperature sensor
  • Embedded FIFO

Documents:

What is the price of SparkFun 9 Degrees of Freedom IMU Breakout - LSM9DS0 in Bangladesh?

The latest price of SparkFun 9 Degrees of Freedom IMU Breakout - LSM9DS0 in Bangladesh is BDT 2,700 You can buy the SparkFun 9 Degrees of Freedom IMU Breakout - LSM9DS0 at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
