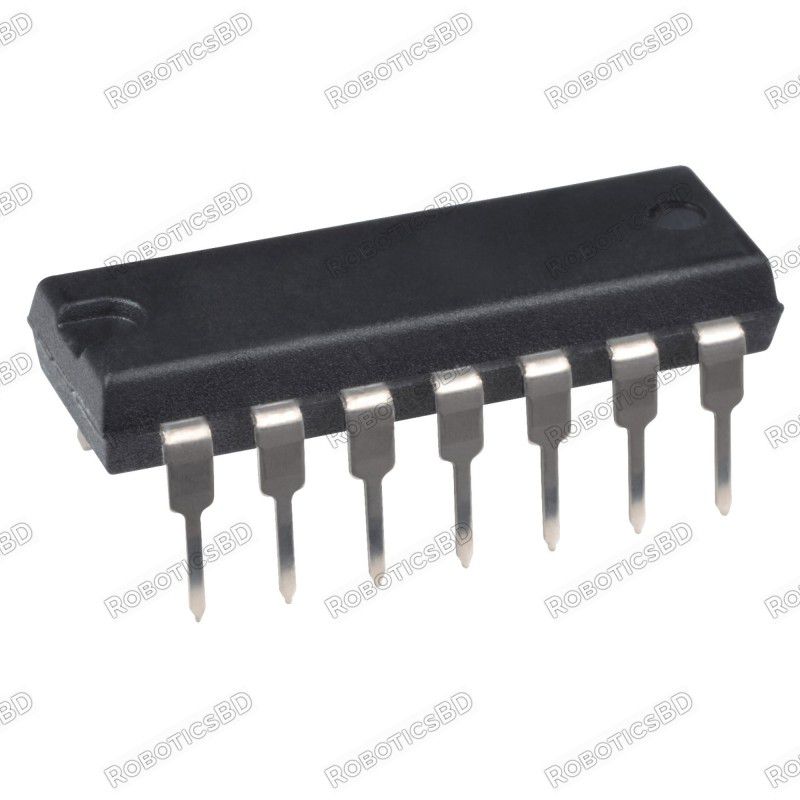

NE556N TIMER DUAL DIP-14

RBD-1035
  • IC Name: NE556N
  • Package/Case: DIP-14
BDT 25
rating Read the 3 reviews
Average rating: 5/5 - Number of reviews: 3
Quantity
In-Stock

5 people have purchased this item in last 12 months
35 people recently added this item to the cart
102 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The NE556, SA556 and SE556 dual monolithic timing circuits are highly stable controllers capable of producing accurate time delays or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Low turn-off time
  2. Maximum operating frequency greater than 500 kHz
  3. Timing from microseconds to hours
  4. Operates in both astable and monostable modes
  5. Output can source or sink up to 200 mA
  6. Adjustable duty cycle
  7. TTL compatible
  8. Temperature stability of 0.005% per °C

Documentation:

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Mounting Type Through Hole
Product Series NE556, SA556, SE556
Weight (gm) 1 (approx.)
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x NE556N TIMER DUAL DIP-14

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of NE556N TIMER DUAL DIP-14 in Bangladesh?

The latest price of NE556N TIMER DUAL DIP-14 in Bangladesh is BDT 25 You can buy the NE556N TIMER DUAL DIP-14 at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1035
102 Items
Ok
rating
21/08/2024
ALBAB
Ok
OK
rating
25/09/2022
Good & Bad
OK
Riaj
rating
06/10/2020
Mohammad Riajul Hoque Chy
found goods in good condition and well packaged
