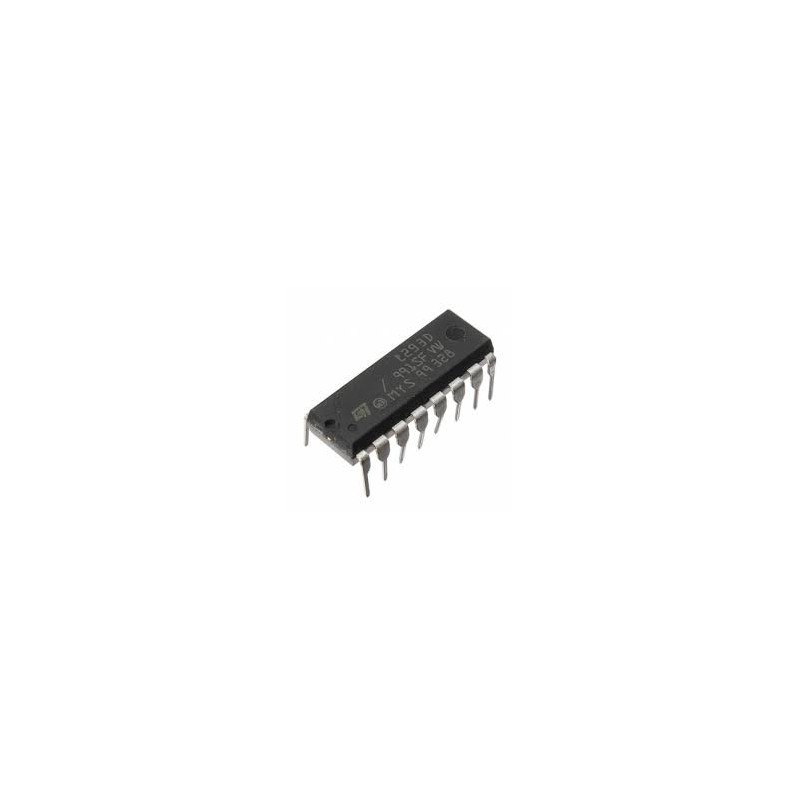

L293D PowerDIP-16 Stepper Motor Controller/ Driver is a dual H-bridge motor driver integrated circuit (IC). Motor drivers act as current amplifiers since they take a low-current control signal and provide a higher-current signal. This higher current signal is used to drive the motors. RoboticsBD
The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistors. To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.
It is suitable for use in switching applications at frequencies up to 5 kHz. The L293D is assembled in a 16 lead plastic package which has 4 centre pins connected together and used for heatsinking The L293DD is assembled in a 20 lead surface mount which has 8 centre pins connected together and used for heatsinking. RoboticsBD
L293D contains two inbuilt H-bridge driver circuits. In its common mode of operation, two DC motors can be driven simultaneously, both in forward and reverse direction. The motor operations of two motors can be controlled by input logic at pins 2 & 7 and 10 & 15. Input logic 00 or 11 will stop the corresponding motor. Logic 01 and 10 will rotate it in clockwise and anticlockwise directions, respectively. Enable pins 1 and 9 (corresponding to the two motors) must be high for motors to start operating.
When an enable input is high, the associated driver gets enabled. As a result, the outputs become active and work in phase with their inputs. Similarly, when the enable input is low, that driver is disabled, and their outputs are off and in the high-impedance state. They are designed to drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as their high-current/high-voltage loads in positive-supply applications. . Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- DC motor control in robots and other automated systems
- Control of small motors in toys, appliances, and other consumer electronics
- Stepper motor control in automated systems
- Powering solenoids and other inductive loads
- Control of high-current loads in industrial control systems
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Dual H-Bridge configuration for driving two DC motors
- Low voltage operation, compatible with a wide range of voltage supplies
- Output current capability up to 1.2 A per channel
- Built-in thermal protection to prevent damage to the IC
- Easy to interface with microcontrollers and other control systems
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Package/Case |
PowerDIP-16 |
| Mounting Type |
Through Hole |
| No. of Drivers |
1 |
| No. of Output |
2 |
| Maximum Supply Voltage (V) |
36 |
| Minimum Supply Voltage (V) |
4.5 |
| Max. Operating Current (mA) |
2 |
| Max. Output Current (A) |
600 mA |
| Operating Temperature Range (°C) |
-40 to 130 |
| Dimensions in mm (LxWxH) |
19.20 x 7.97 x 3.26 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:
1 x L293D
