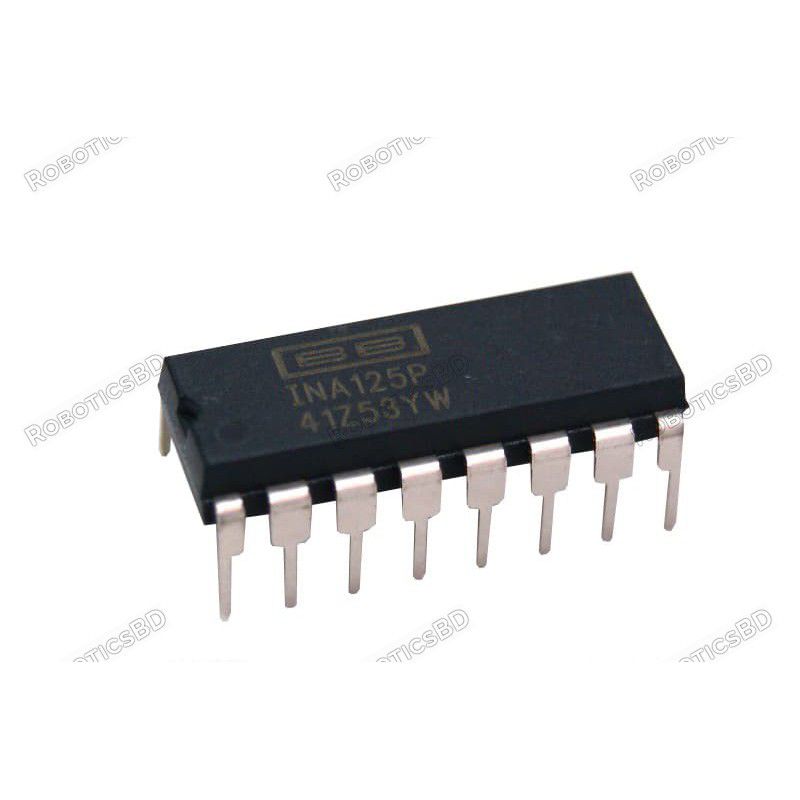

The INA125 is a low-power, high-accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit. A single external resistor sets any gain from 4 to 10,000. The INA125 is laser-trimmed for low offset voltage (250µV), low offset drift (2µV/°C), and high common-mode rejection (100dB at G = 100). It operates on either single (+2.7V to +36V) or dual (±1.35V to ±18V) supplies.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The INA125 is a low-power, high-accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit. A single external resistor sets any gain from 4 to 10,000. The INA125 is laser-trimmed for low offset voltage (250µV), low offset drift (2µV/°C), and high common-mode rejection (100dB at G = 100). It operates on either single (+2.7V to +36V) or dual (±1.35V to ±18V) supplies.
The voltage reference is externally adjustable with pin-selectable voltages of 2.5V, 5V, or 10V, making it compatible with various transducers. The reference voltage is accurate to ±0.5% (max) with ±35ppm/°C drift (max). A sleep mode allows for shutdown and duty cycle operation to save power.
The INA125 is available in 16-pin plastic DIP and SO-16 surface-mount packages and is specified for the industrial temperature range of –40°C to +85°C.
INA125 Instrumentation Amplifier with Precision Voltage Reference IC. The INA125 is a low power, high accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit.
Note: Product Images are shown for illustrative purposes only and may differ from the actual product. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| LOW QUIESCENT CURRENT: | 460µA |
| PRECISION VOLTAGE REFERENCE: | 1.24V, 2.5V, 5V or 10V |
| SLEEP MODE | Yes |
| LOW OFFSET VOLTAGE: | 250µV max |
| LOW OFFSET DRIFT: | 2µV/°C max |
| LOW INPUT BIAS CURRENT: | 20nA max |
| HIGH CMR: | 100dB min |
| LOW NOISE: | 38nV/√Hz at f = 1kHz |
| INPUT PROTECTION | TO ±40V |
| WIDE SUPPLY RANGE | Yes |
| Single Supply: | 2.7V to 36V |
| Dual Supply: | ±1.35V to ±18V |
| 16-PIN DIP AND SO-16 SOIC PACKAGES | Yes |
| Shipment Weight | 0.001 kg |
| Shipment Dimensions | 3 x 3.5 x 0.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x INA125P IC
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of INA125P Instrumentation Amplifier With Precision Voltage Reference in Bangladesh is BDT 1,150 You can buy the INA125P Instrumentation Amplifier With Precision Voltage Reference at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
